PRO181R2O > Dart SBC with spread rails
PRO181R2O - $817.03
- Style:
- Dart SBC with spread rails
- Dimensions:
- 4 7/8" deep

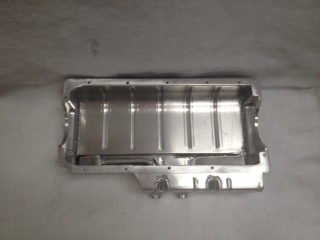

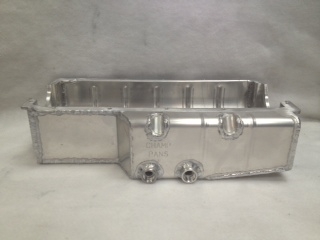

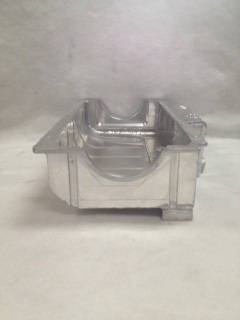

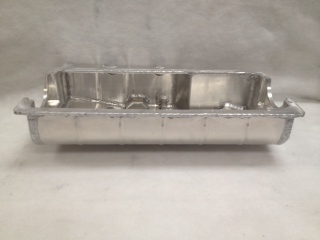

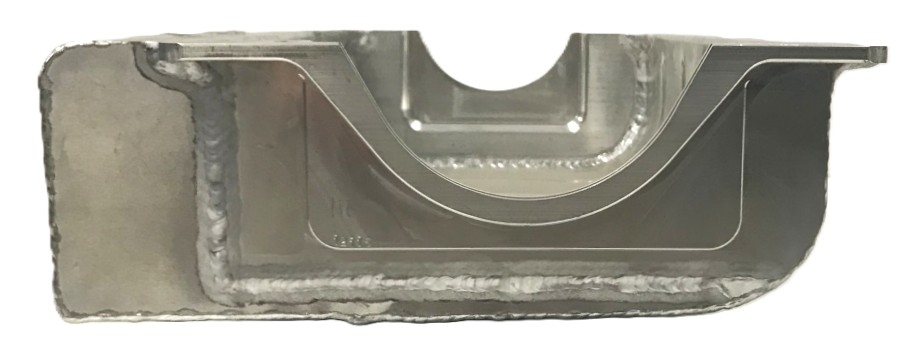

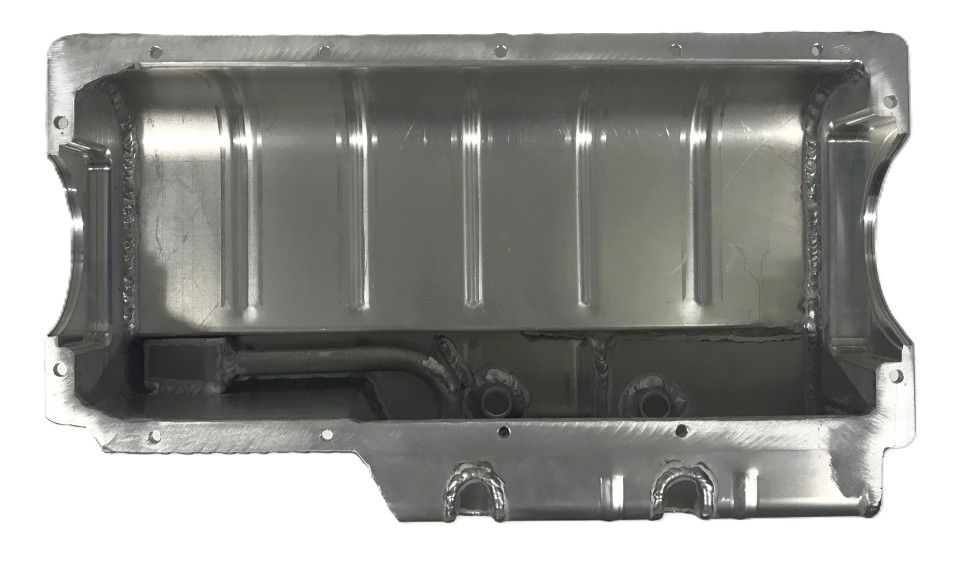

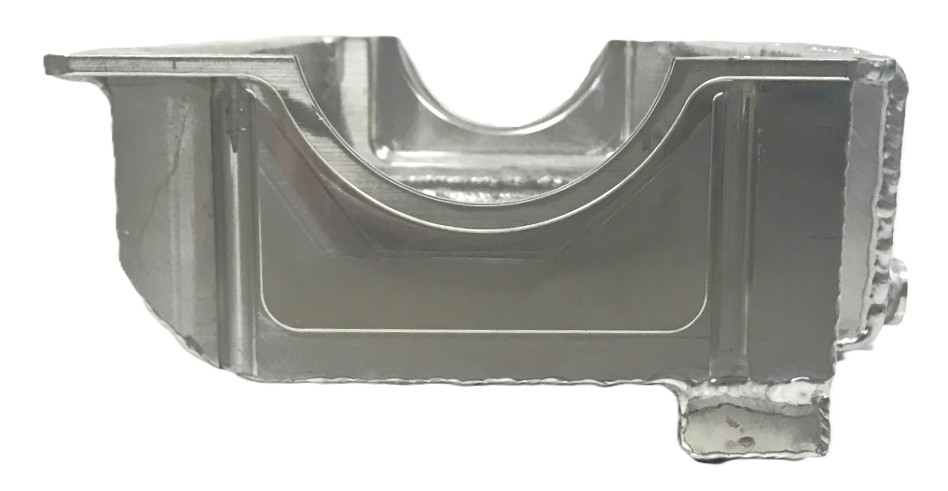

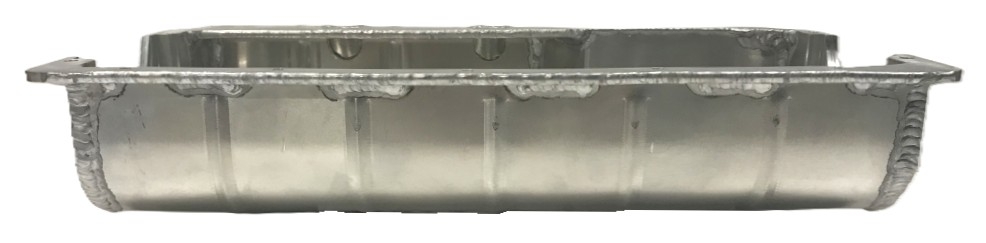

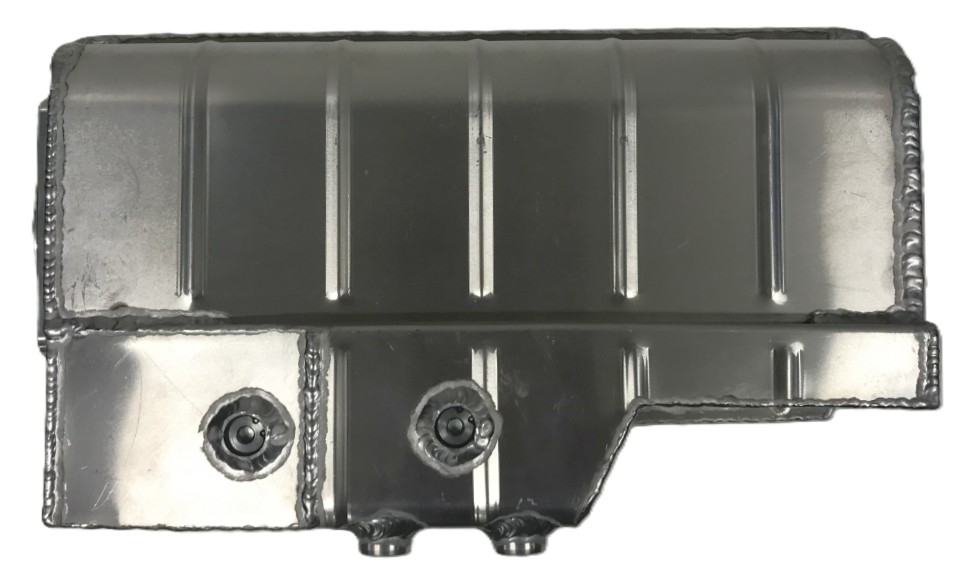

Description:This aluminum dry sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- made out of .100” aluminum
- access holes for mounting the right side pan bolts

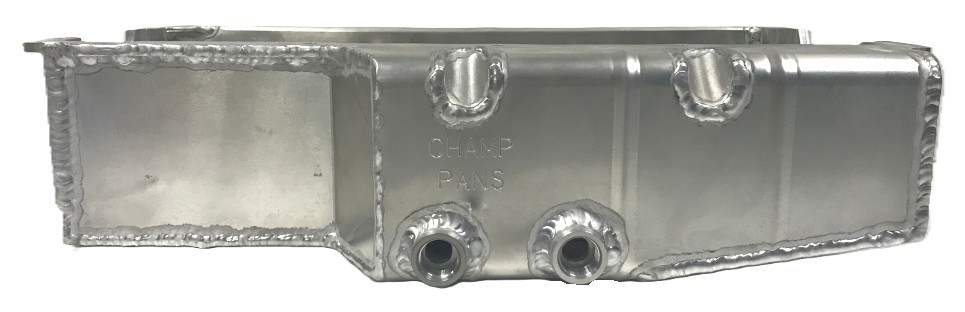

- two -10 o-ring ports that exit the bottom right side of the pan
- one inspection hole
- one drain plug
No pan gasket required.
It is notched for a front mini-starter.
Use: Off-road trucks
Starter: Mini-starter
Dimensions: 4 7/8" deep
