PRO180R3 > Dart SBC with spread rails
PRO180R3 - $734.25
- Style:
- Dart SBC with spread rails
- Dimensions:
- 5 1/2" deep

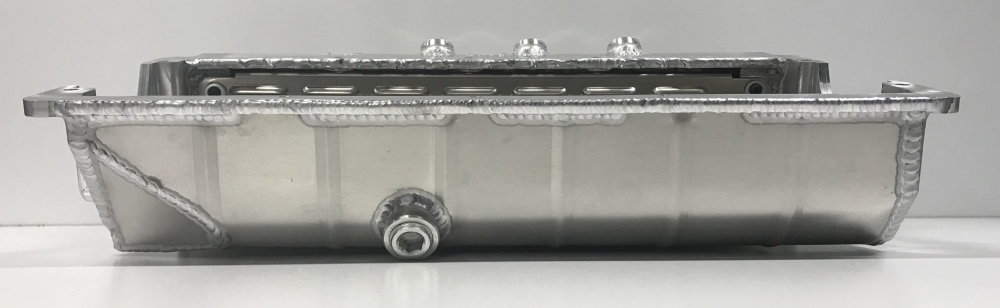

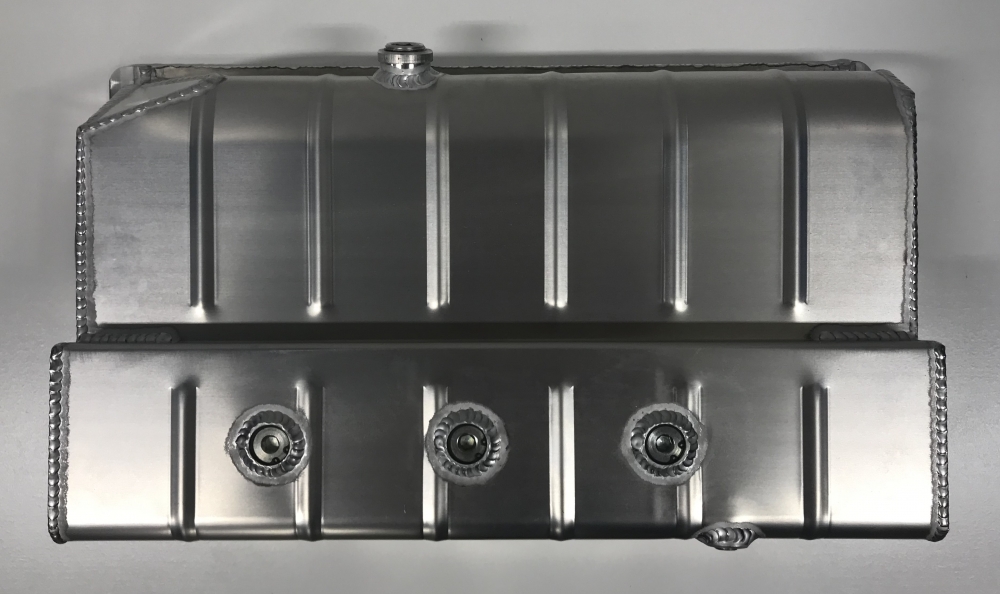

Description:This aluminum dry sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:

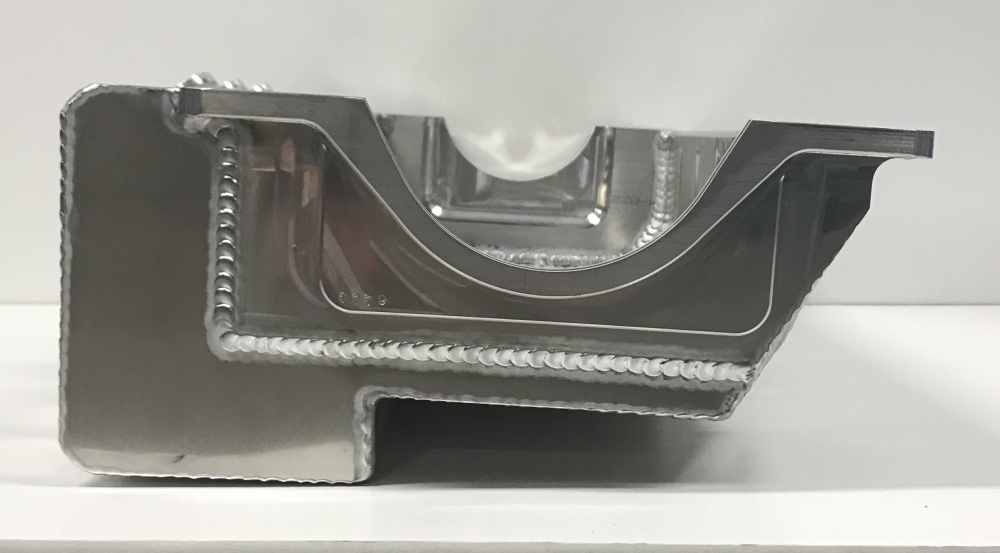

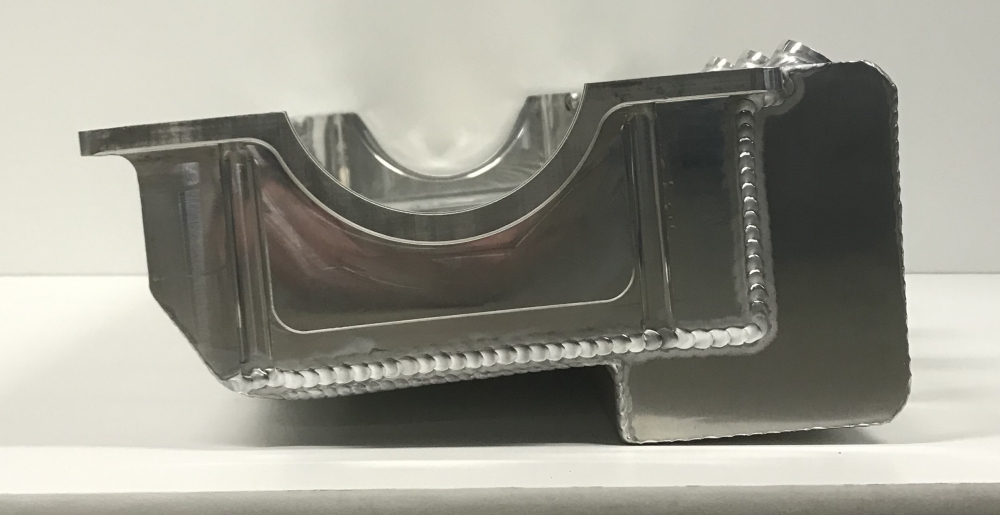

- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting the right side pan bolts

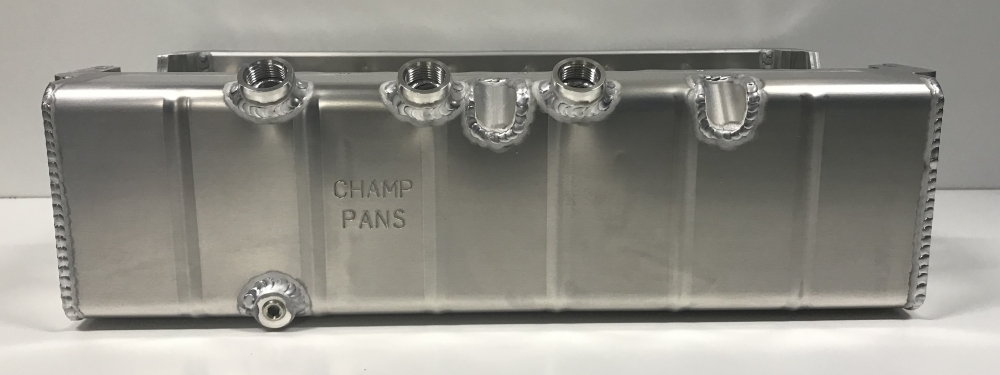

- three -12 o-ring ports that exit the top right side of the pan
- an inspection hole

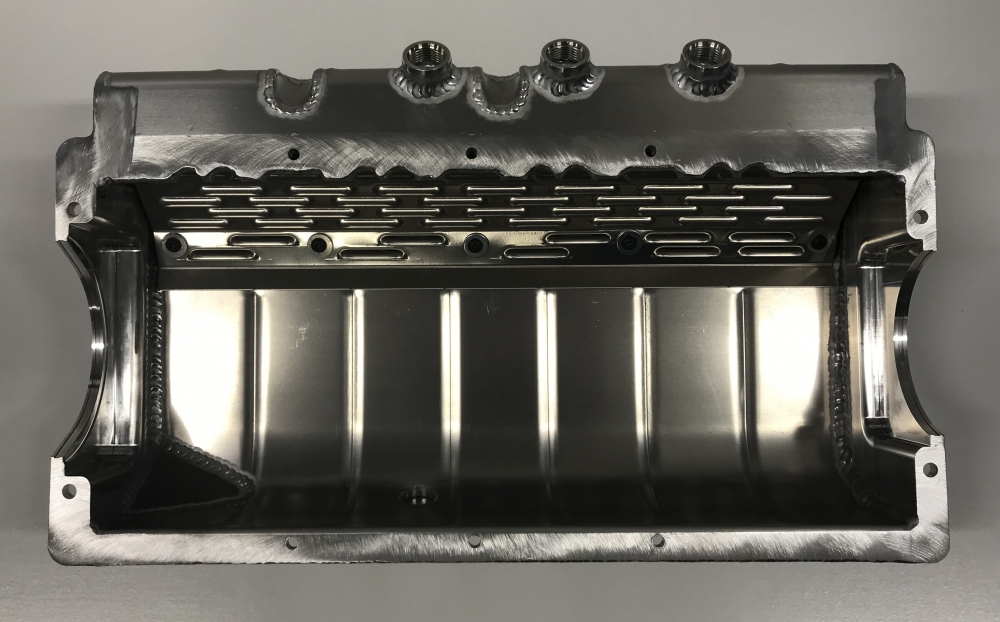

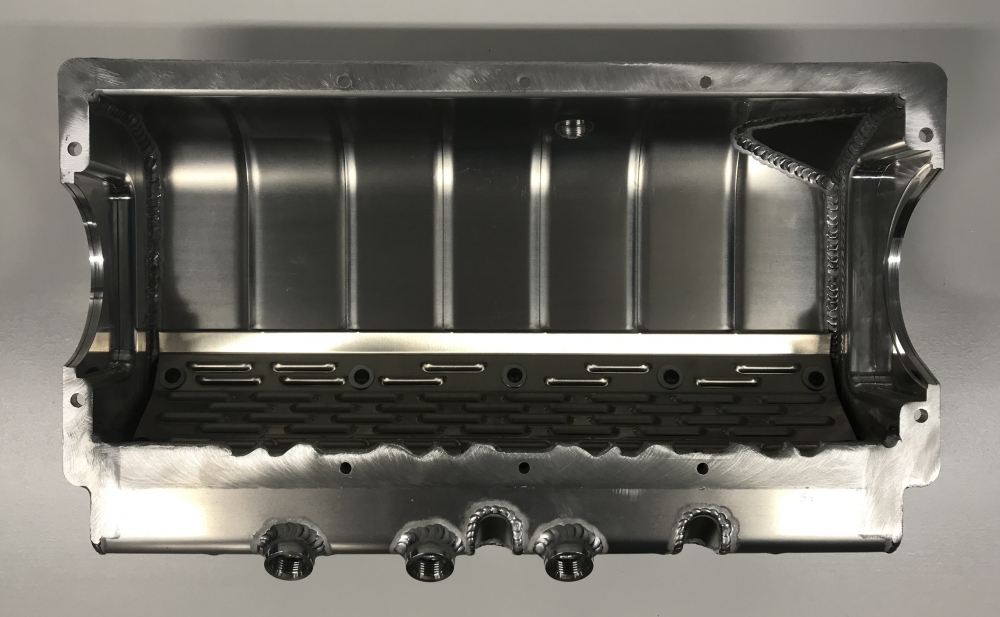

- a louvered windage tray
- a drain plug
No pan gasket required.
It will clear a mechanical fuel pump.
Use: Dirt circle track
Starter: Reverse mounted
Dimensions: 5 1/2” deep on right side; 4 1/4” deep in front
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| CP15012 | PRO170s, PRO180s | Louvered windage tray | $34.93 |
