PRO172R3A > Small Block Chevrolet 1957-1985
PRO172R3A - $747.18
- Style:
- Small Block Chevrolet 1957-1985
- Dimensions:
- 4 1/4" deep

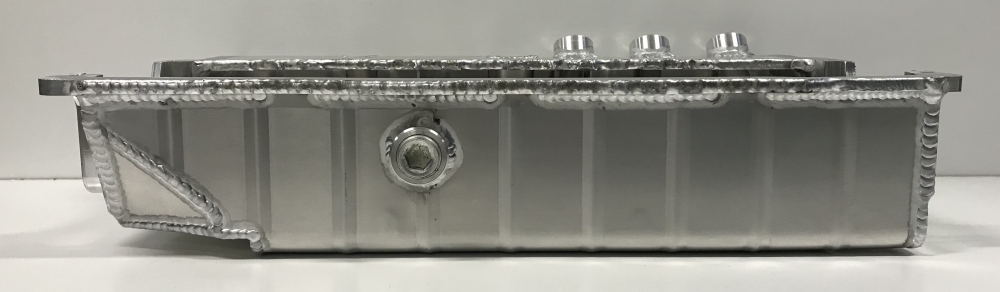

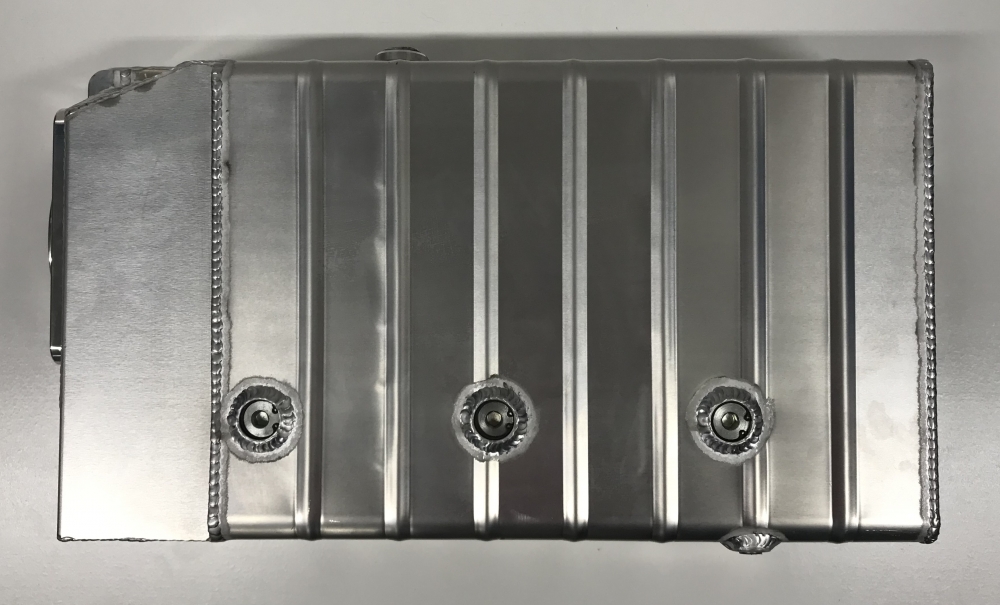

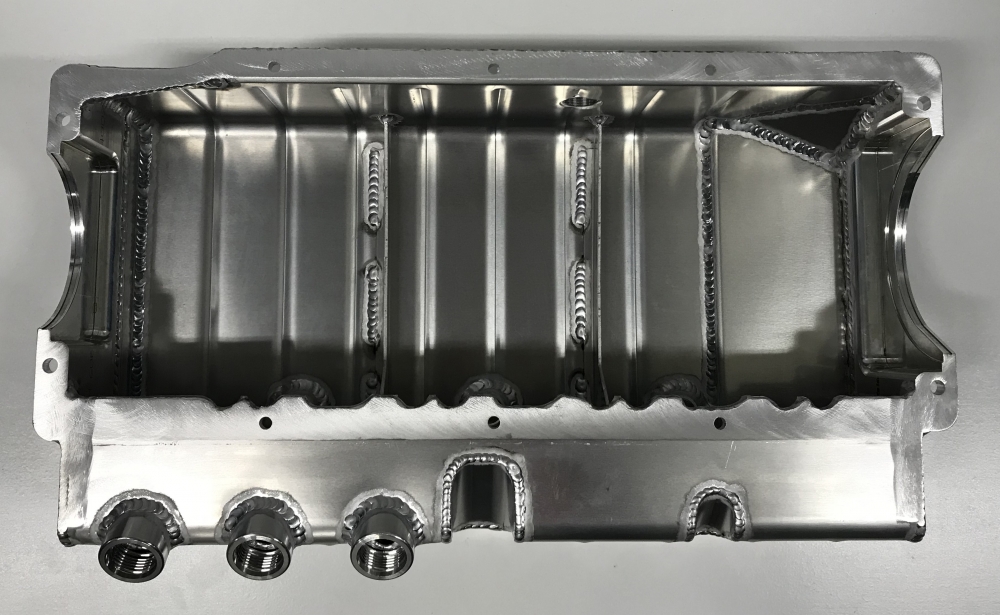

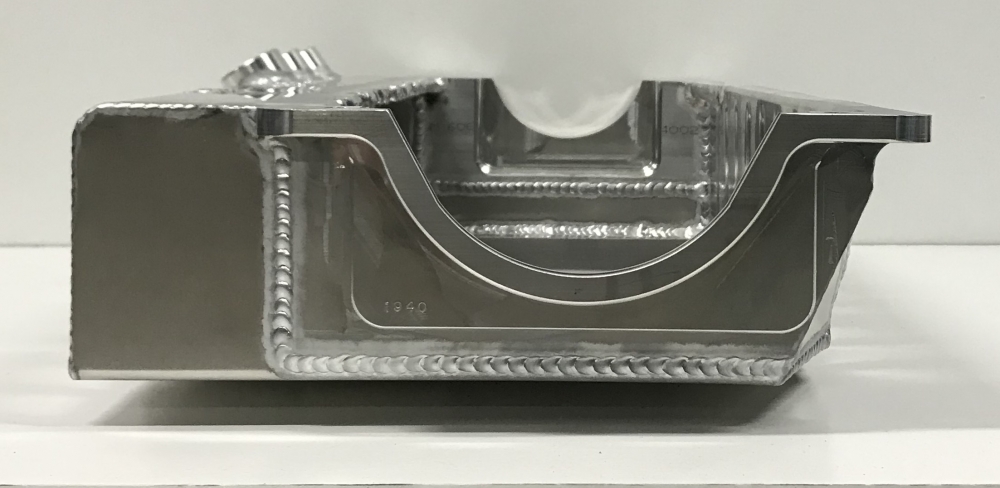

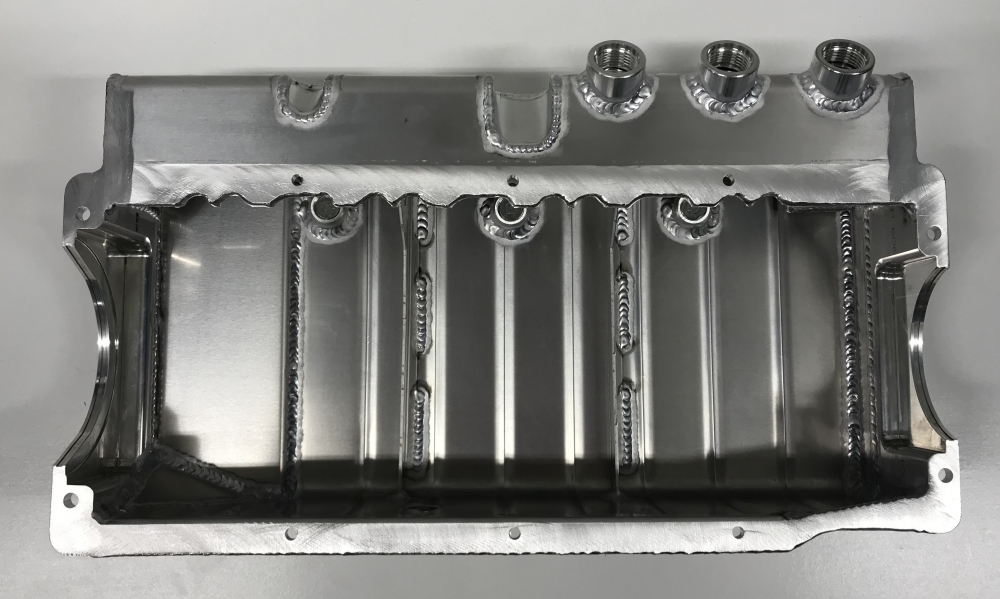

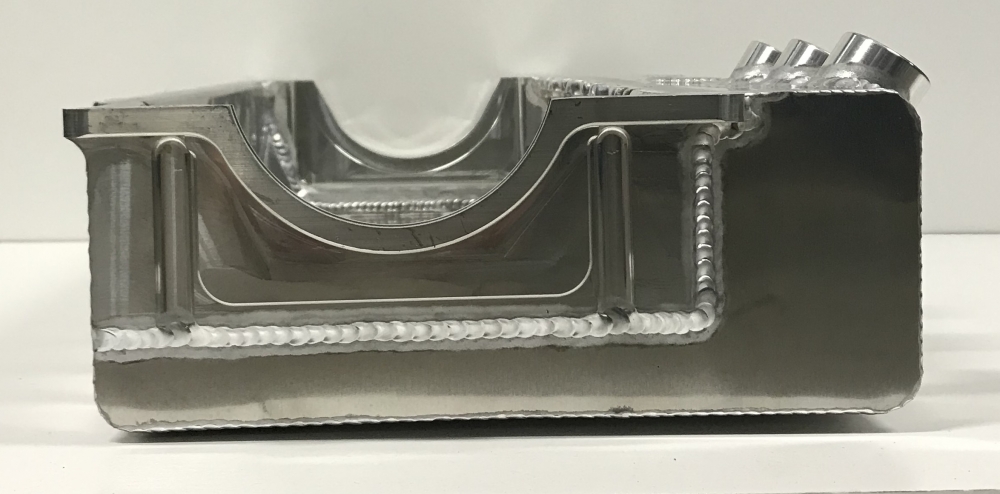

Description:This aluminum dry sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting
- three -12 o-ring ports that exit the top right side of the pan
- an inspection hole
- a drain plug
No pan gasket required.
It will clear a mechanical fuel pump.
Use: Asphalt circle track (late model)
Fits: Lefthander or Port City Chassis
Starter: Reverse mounted
Dimensions: 4 1/4" deep; front is 3 7/8" deep
