PRO171R3 - $734.25

Style:

Small Block Chevrolet 1957-1985

Dimensions:

6" deep

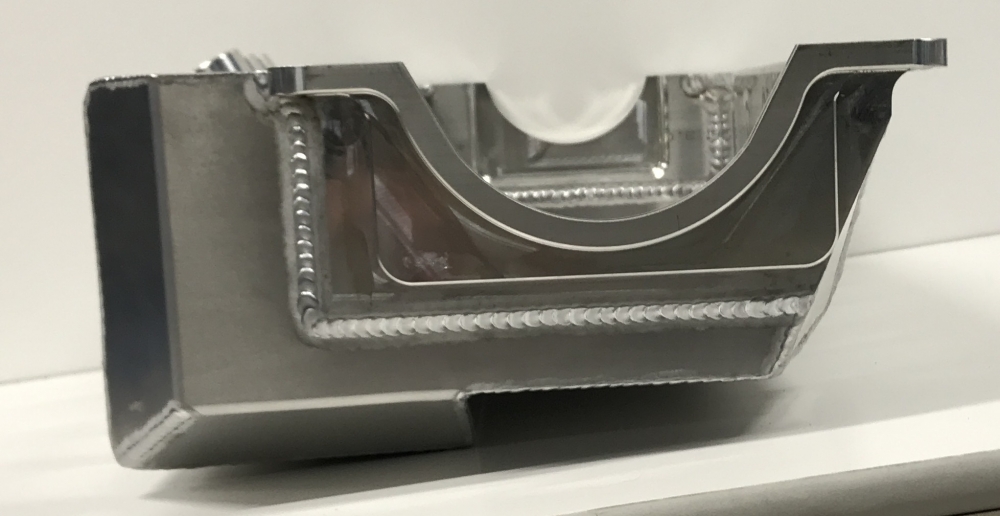

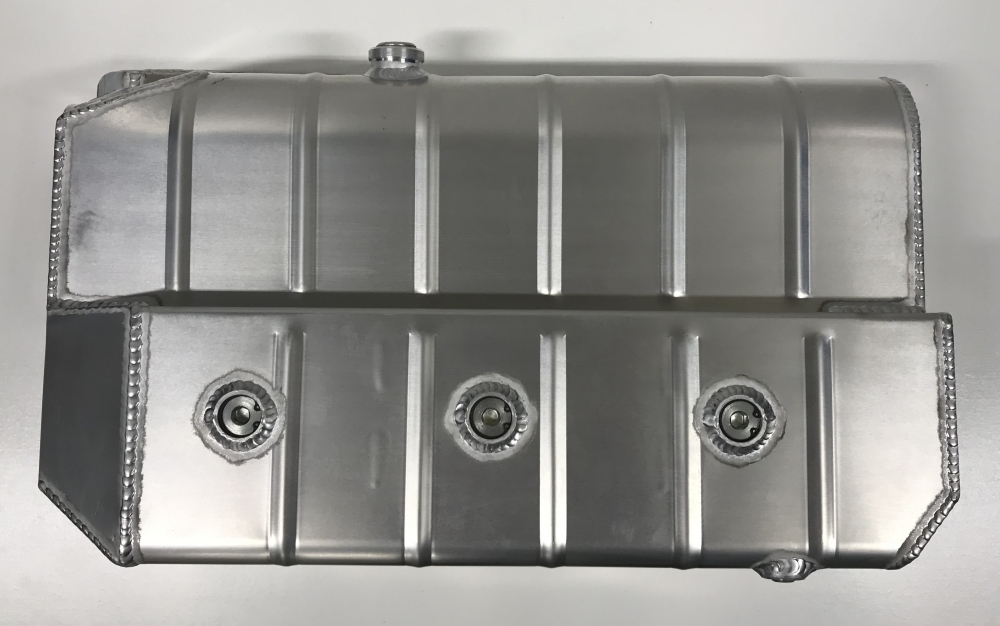

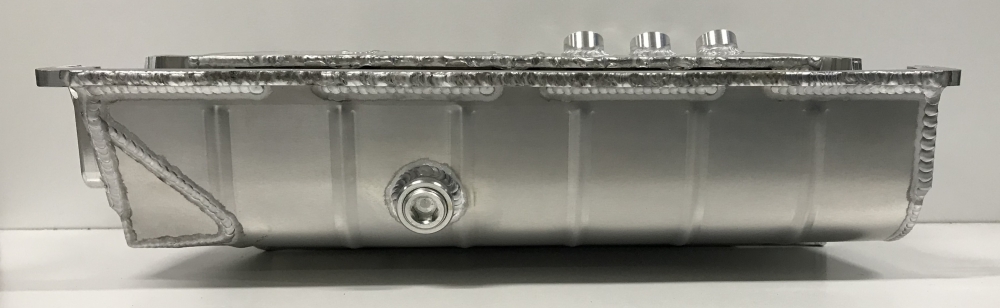

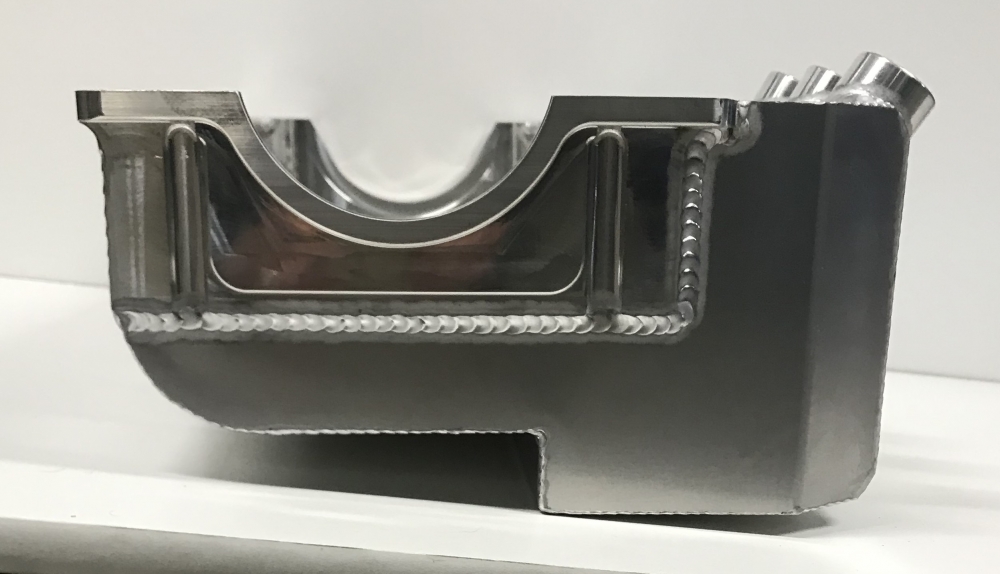

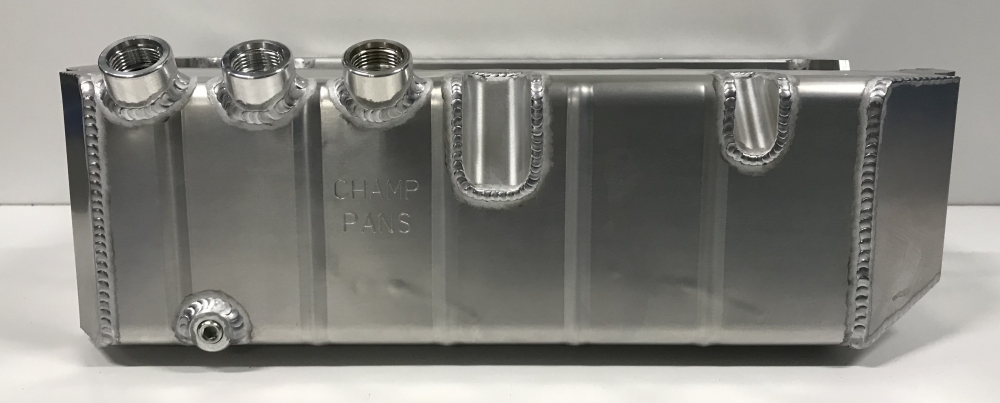

Description:This aluminum dry sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting
- three -12 o-ring ports that exit the top right side of the pan
- an inspection hole
- a drain plug

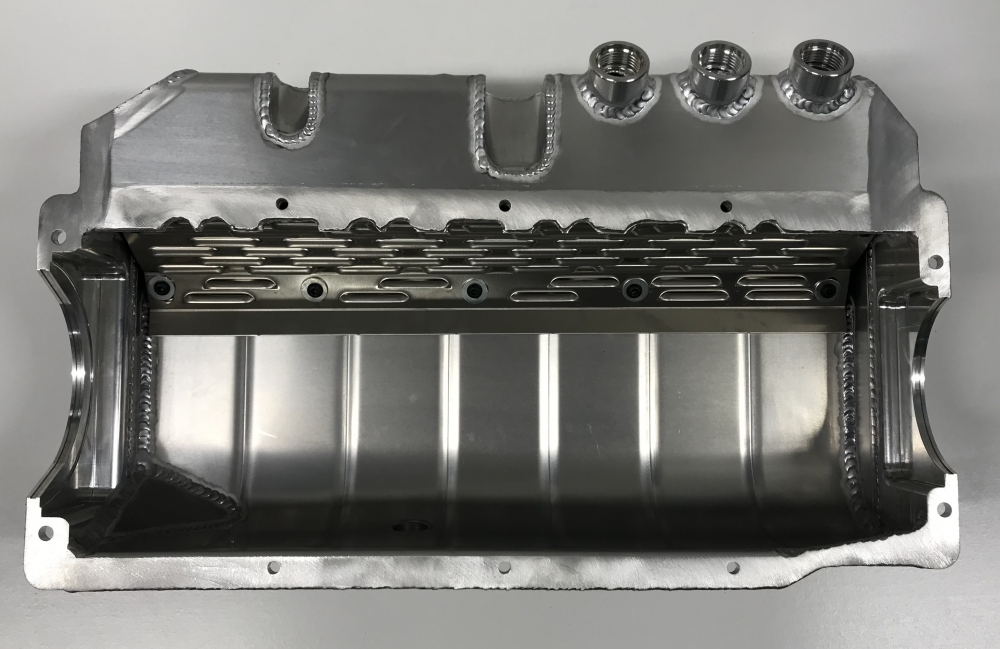

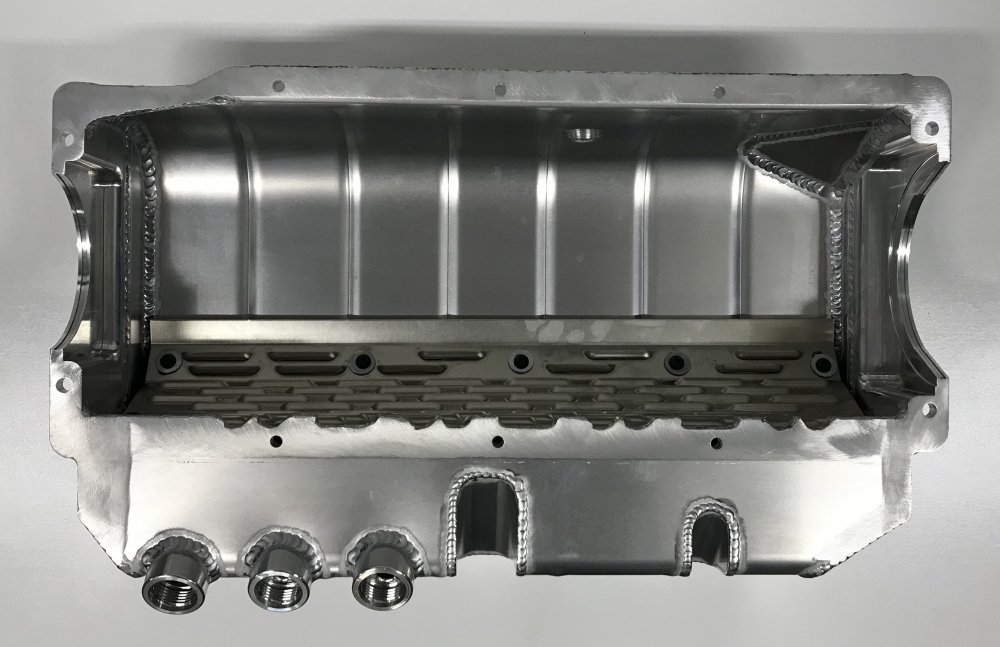

- a louvered windage tray

No pan gasket required.

It will clear a mechanical fuel pump.

Use: Dirt circle track (late model)

Starter: Reverse mounted

Dimensions: 6" deep on right side; 4 1/2" deep on left side
