PRO1106KO > Small Block Chevrolet 1957-1985
PRO1106KO - $798.88
- Style:
- Small Block Chevrolet 1957-1985
- Dimensions:
- 6 1/2" deep

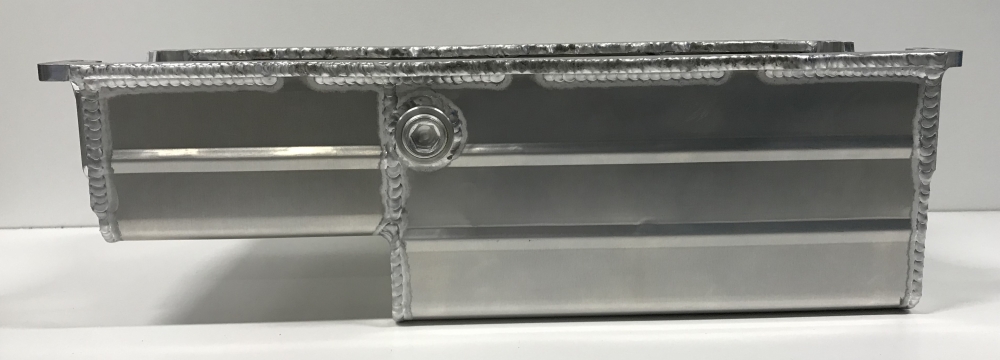

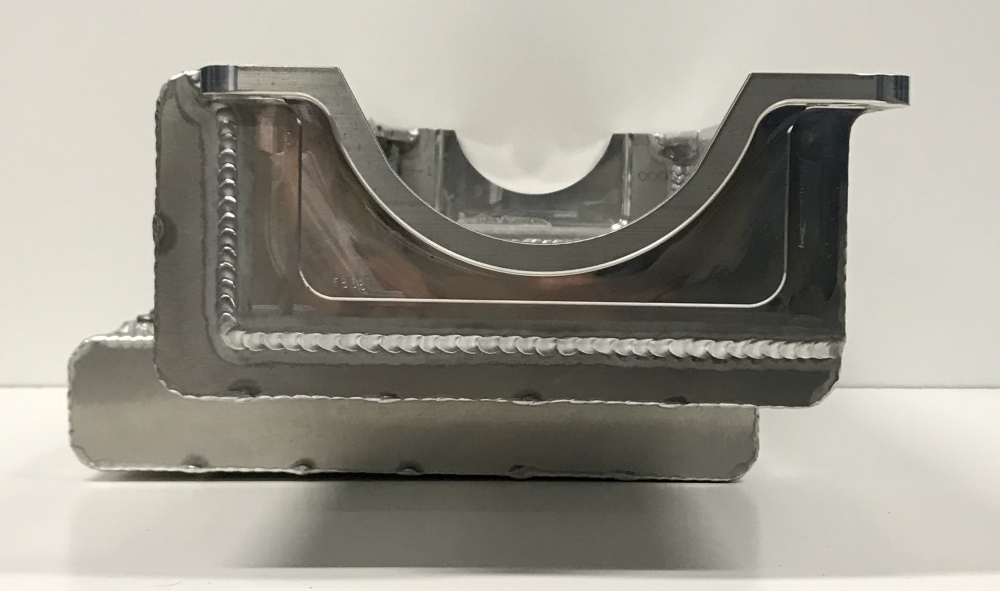

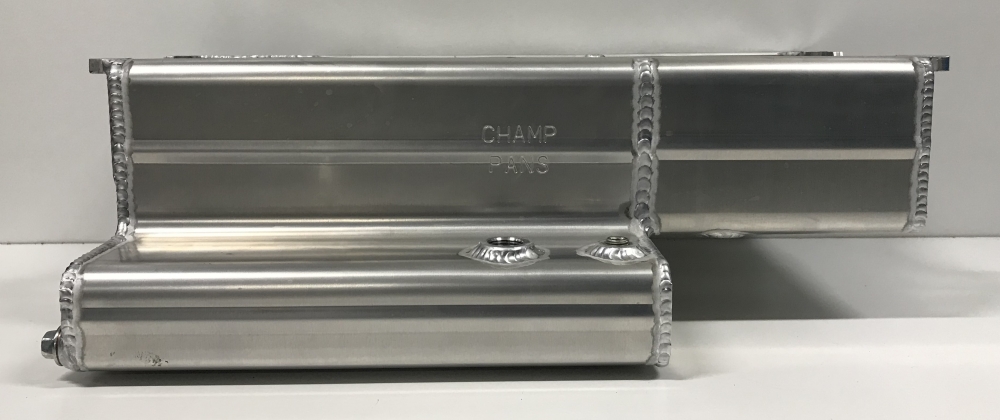

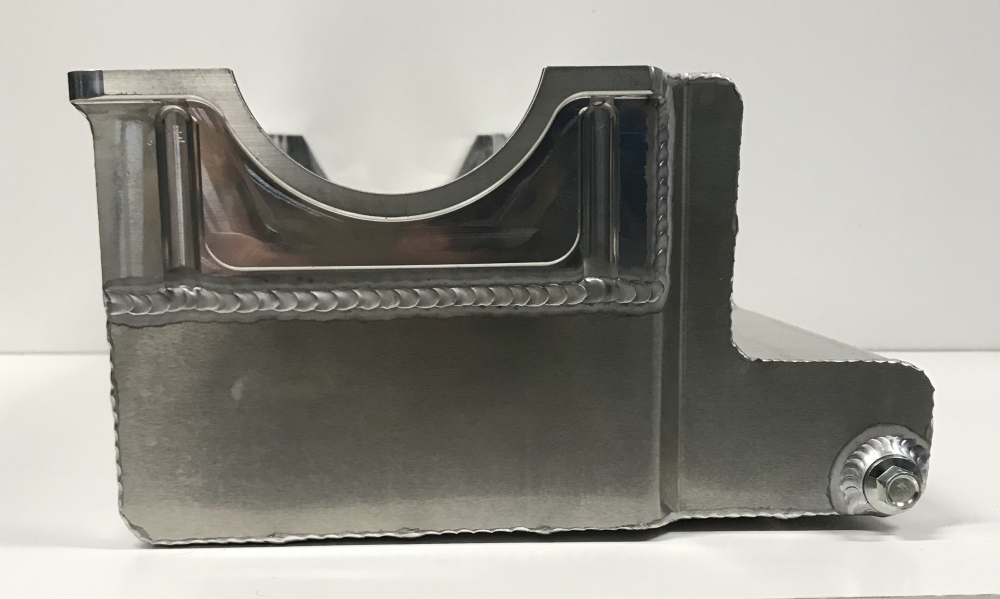

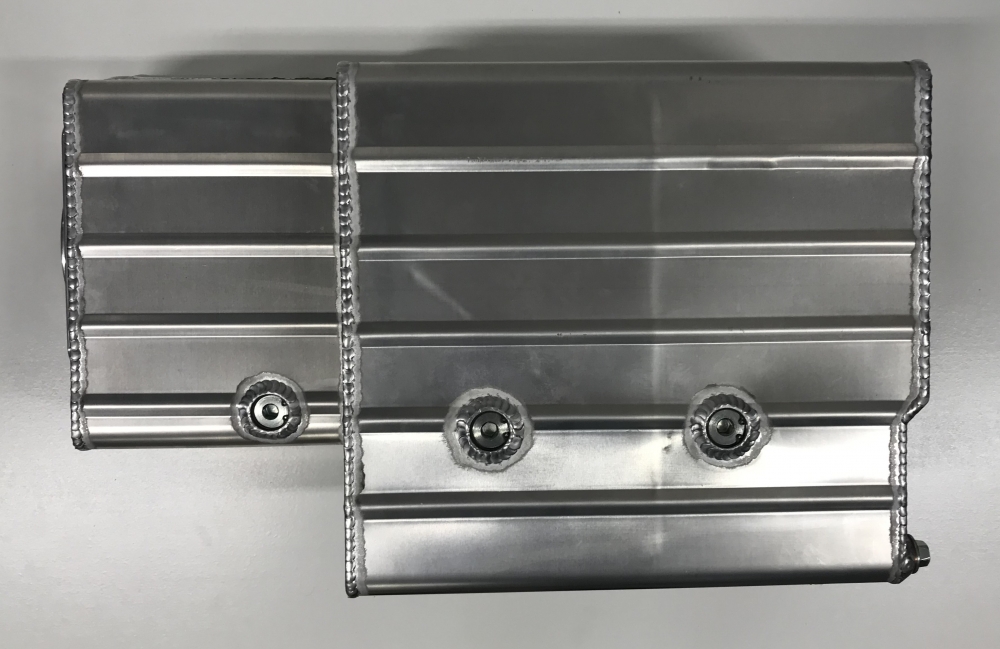

Description:This aluminum wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a right side kick out that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- four trapdoors

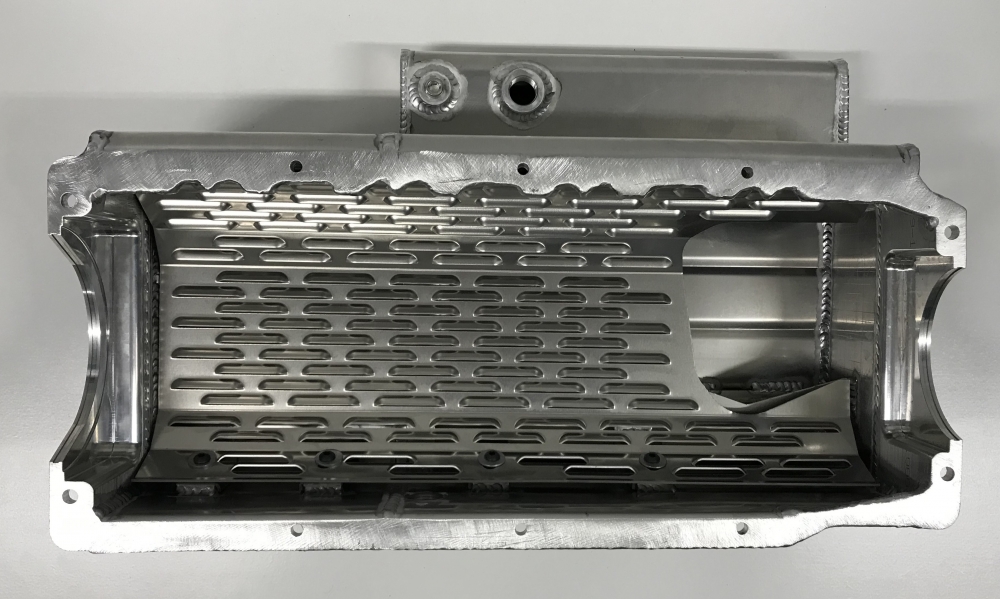

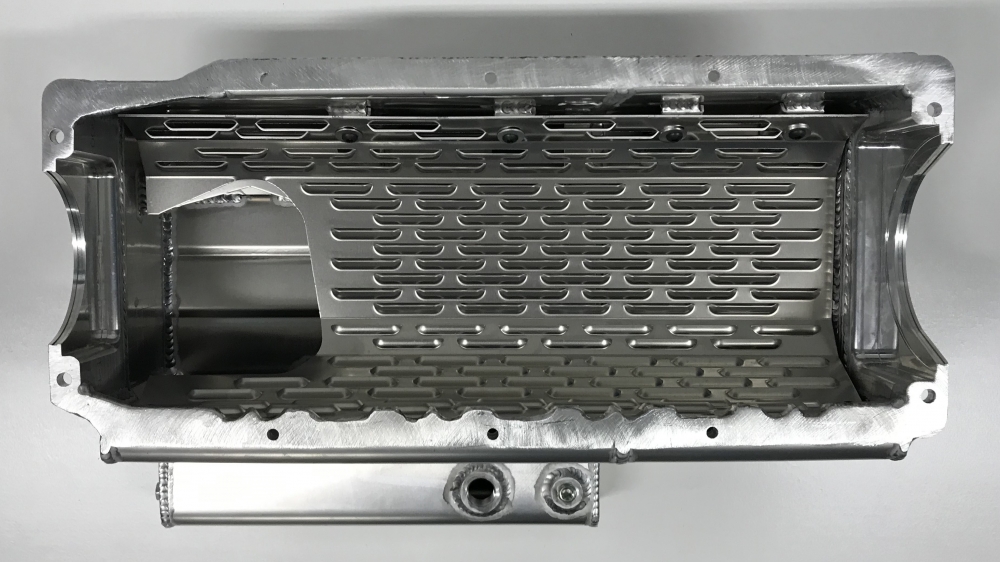

- a louvered windage tray
- an inspection hole
- an oil check level plug
No pan gasket required.
The 1703SB is for the M155 or 10554ST pumps in this oil pan.
Oil capacity: 8 quarts with filter
Use: Asphalt circle track (late model)
Series: Pro
Starter: Mini-starter
Dimensions: 13 1/4” L x 11 3/4" W x 6 1/2" H
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 1106SB | M-55HV, 10550, 10550C and 10550ST | 5/8" x 6 1/2" deep pickup | $52.80 |
| 1703SB | 10552, 10552C, 10552ST, 10555, 10555C and 10555ST | 3/4" x 7" deep pickup | $53.63 |
| 1107SB | M-55, 10553 and 10553ST | 5/8" x 6 1/2" deep pickup | $52.80 |
| 506ST-SB | 10550ST | 3/4” x 6 1/2” deep pickup and pump combination | $318.45 |
