PRO1102KORB > Small Block Chevrolet 1986-2003
PRO1102KORB - $823.63
- Style:
- Small Block Chevrolet 1986-2003
- Dimensions:
- 7" deep

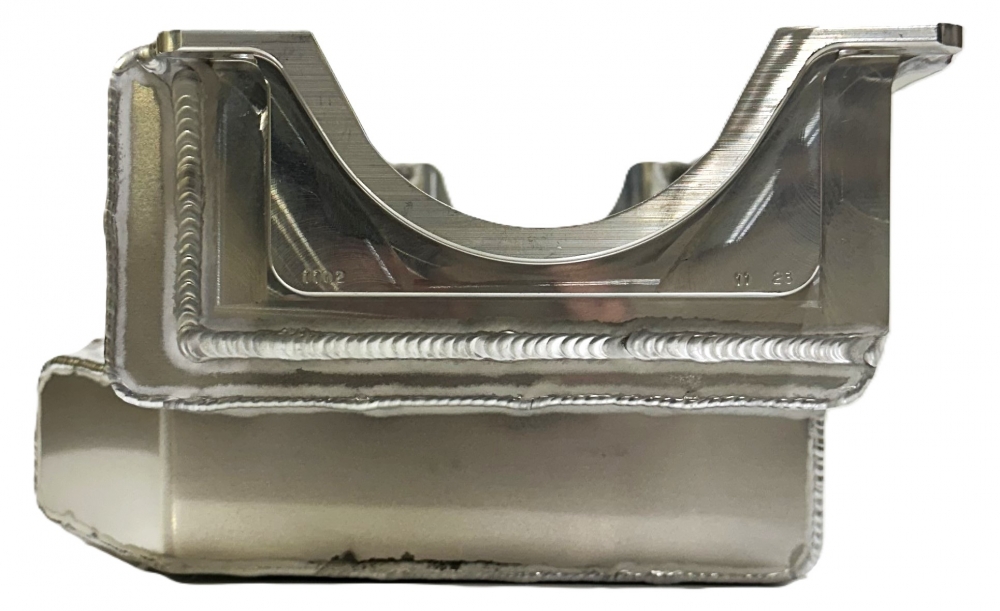

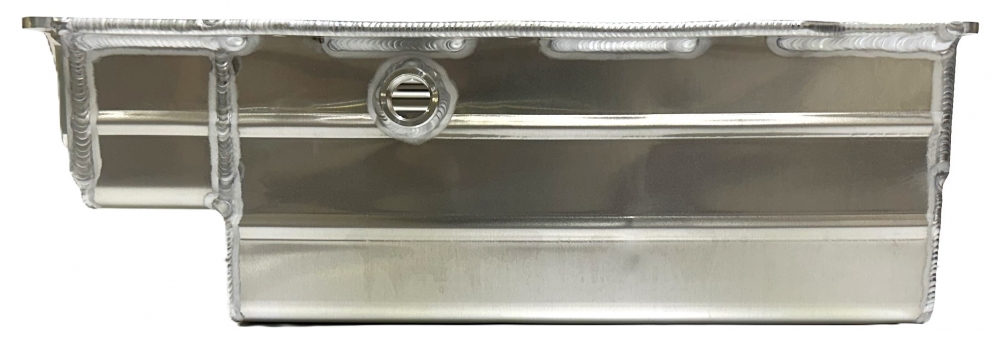

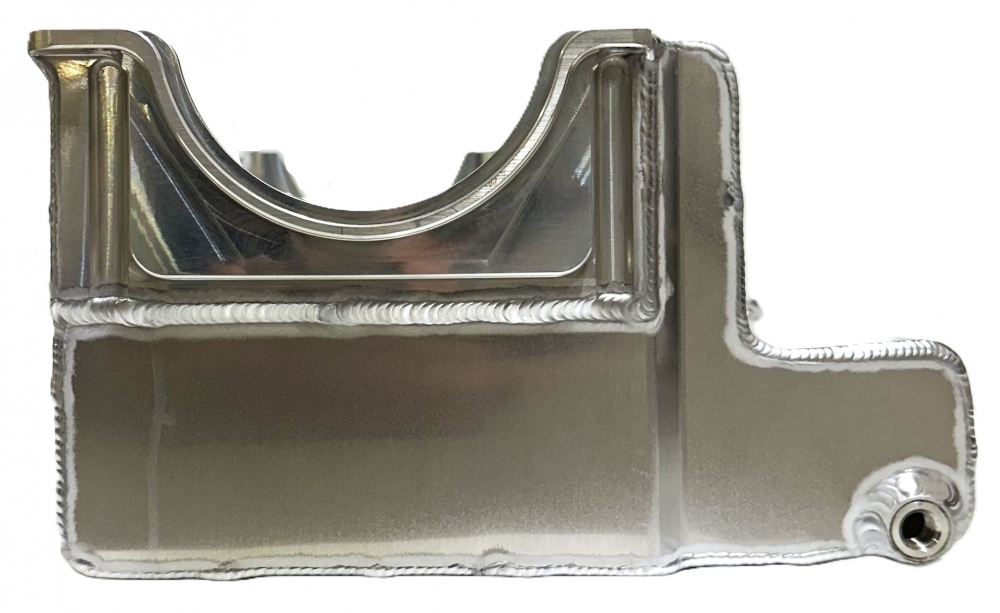

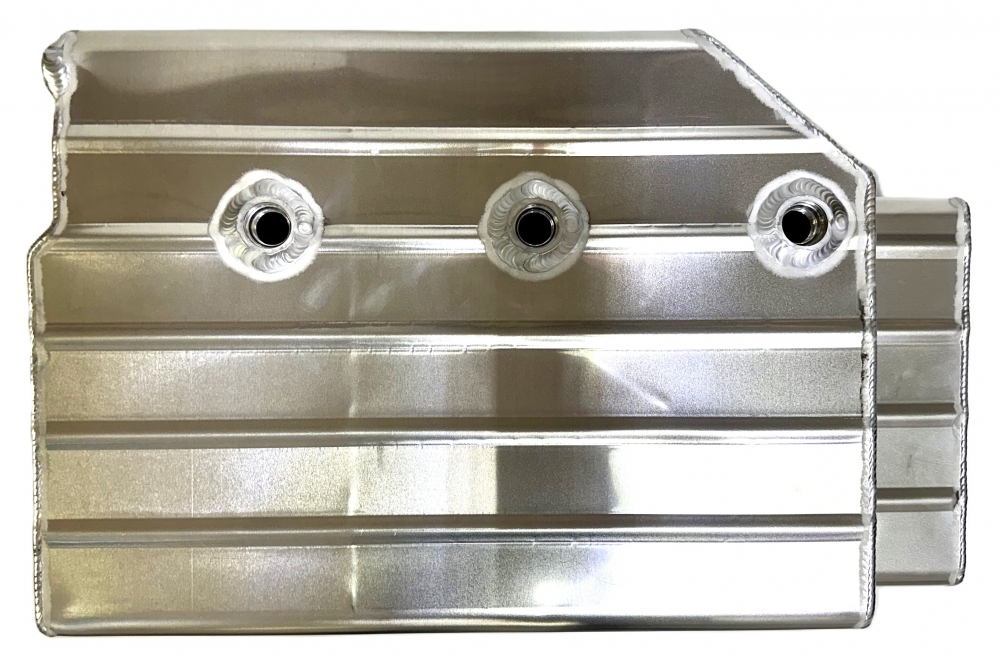

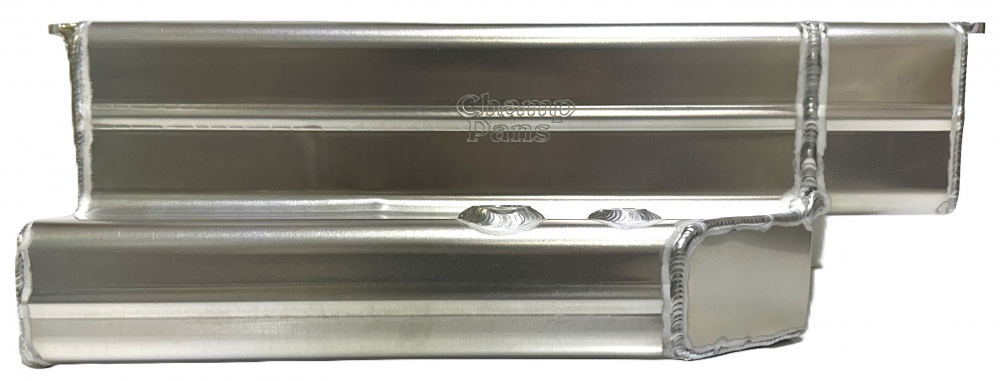

Description:This aluminum wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with a one piece rear main seal engines. This oil pan features:
- a right side kick out that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- five trapdoors

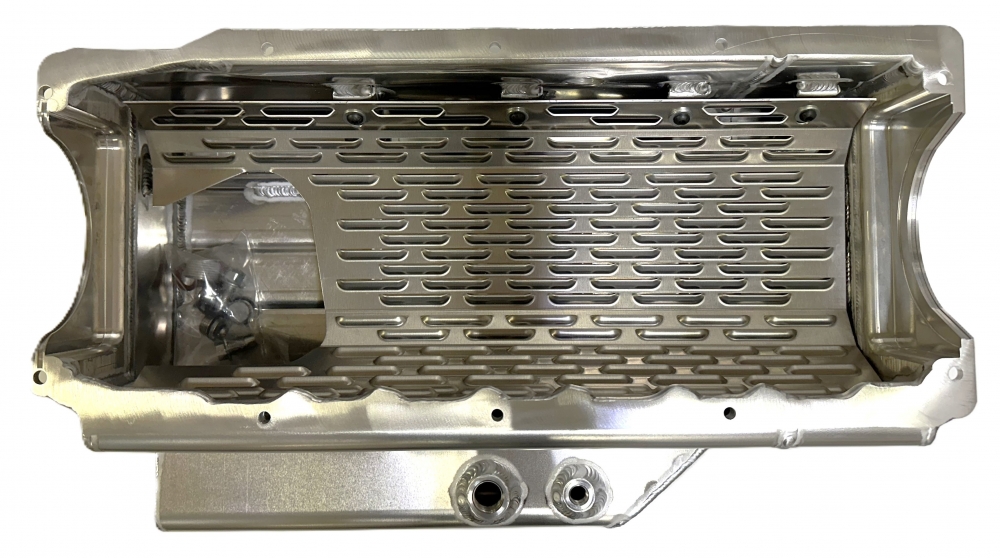

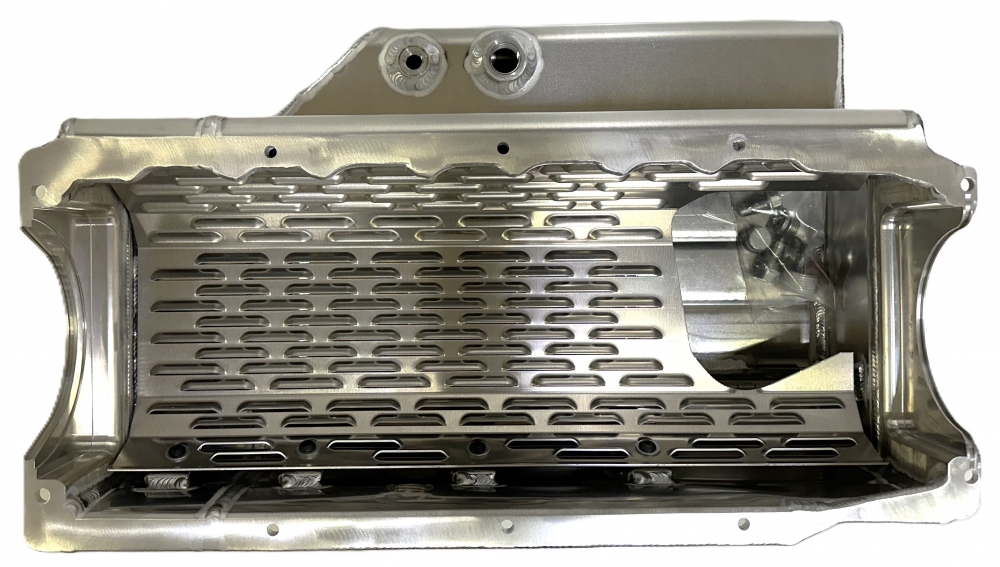

- a louvered windage tray
- an inspection hole
- an oil check level plug
No pan gasket required.
Oil capacity: 9 quarts with filter
Use: Dirt circle track (late model)
Series: Pro
Starter: Mini-starter
Dimensions: 16 1/2” L x 12" W x 7" H
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 100BB | M-77, M-77HV, M-99HV, 10770, 10774, 10778 & 10990 | 3/4” x 7” deep pickup | $42.90 |
| 1008SB | M-55HV & 10550 series | 5/8" x 7" deep pickup | $42.90 |
| 1703SB | 10552, 10552C, 10552ST, 10555, 10555C and 10555ST | 3/4" x 7" deep pickup | $53.63 |
| 1704SB | M155HV, 10551 and 10551ST | 3/4" x 7" deep pickup | $53.63 |
| LT-7 | PRO1100KO, PRO1102KO, PRO1140KO, PRO1150KO | Louvered windage tray | $51.70 |
| OPTION-9 | Any aluminum oil pan | External pickup installed | $78.10 |
| 1026SB | M155, 10554 and 10554ST | 3/4" x 7" deep pickup | $52.80 |
| 1027SB | M-55, M-55A and 10553ST | 5/8" x 7" deep pickup | $52.80 |
| 507ST-SB | 10550ST | 3/4" x 7" deep pickup and pump combination | $318.45 |
| OPTION-20 | PRO1100KO and PRO1102KO | Skid plates installed | $214.50 |
| OPTION-21 | Any aluminum oil pan | 1/2" NPT for drain backs installed | $24.20 |
