PRO1003 - $766.70

Style:

Small Block Chevrolet 1957-1985

Dimensions:

5 3/4" deep

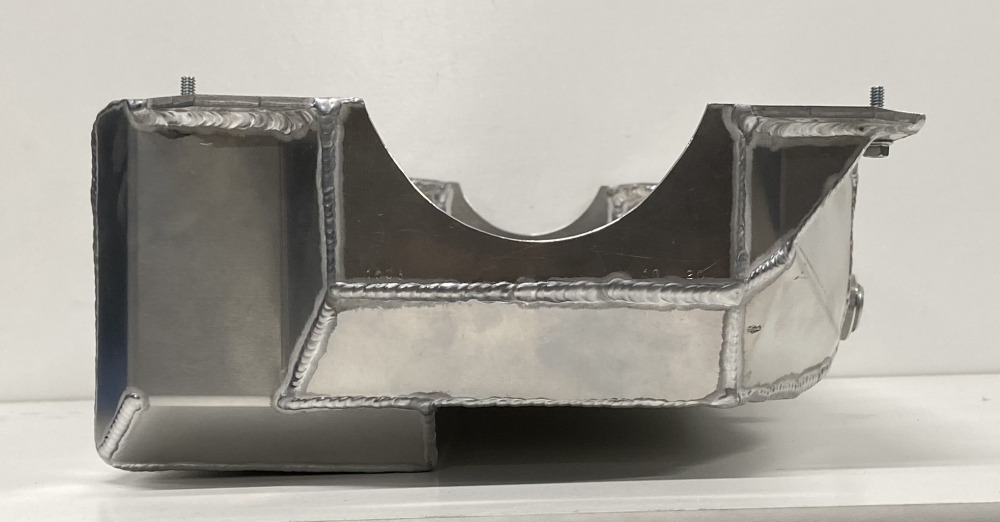

Description:This aluminum dry sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal. This oil pan features:

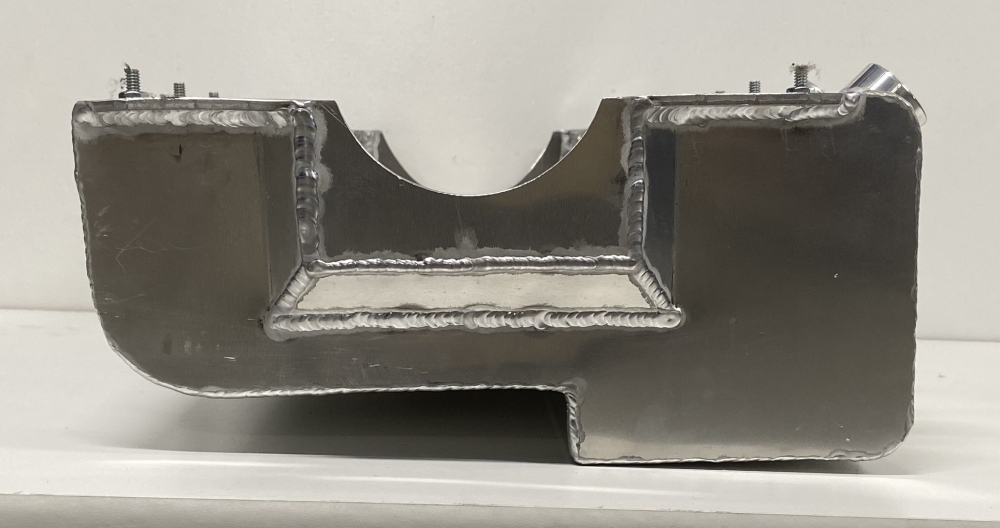

- a double kick out that is 45% larger by volume than our PRO170 pan
- an extra kick out on the left side that frees up 15-20 horsepower

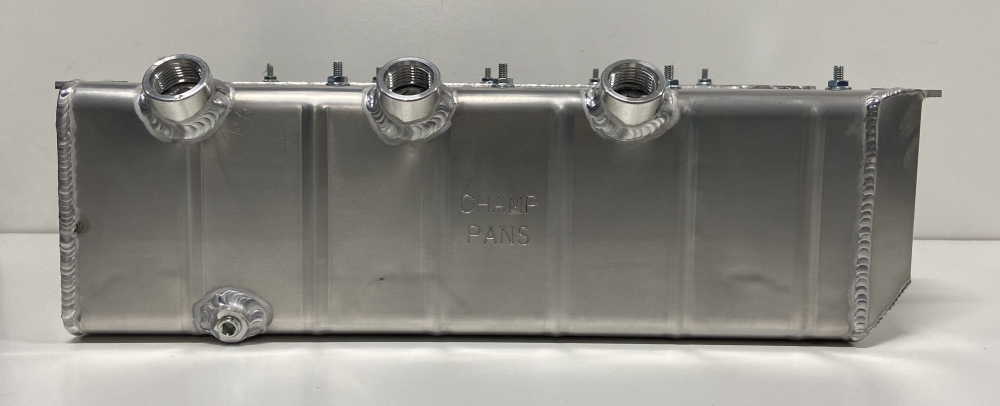

- three -12 o-ring ports that exit the top right side of the pan

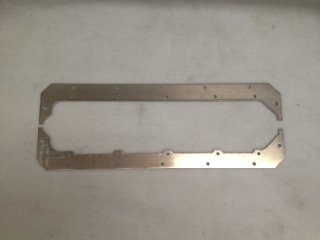

- mounting plates

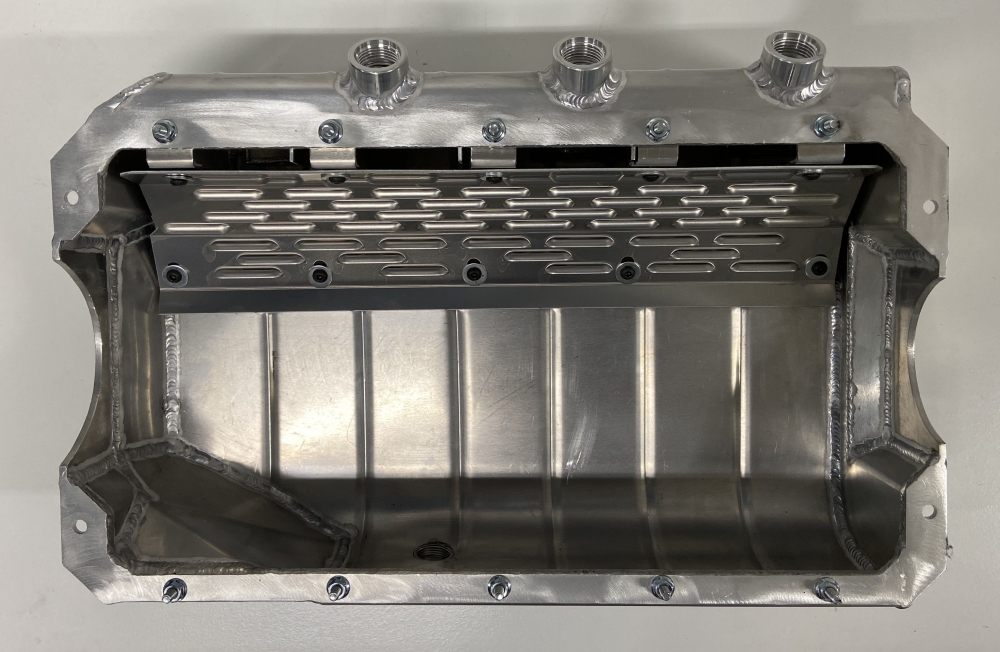

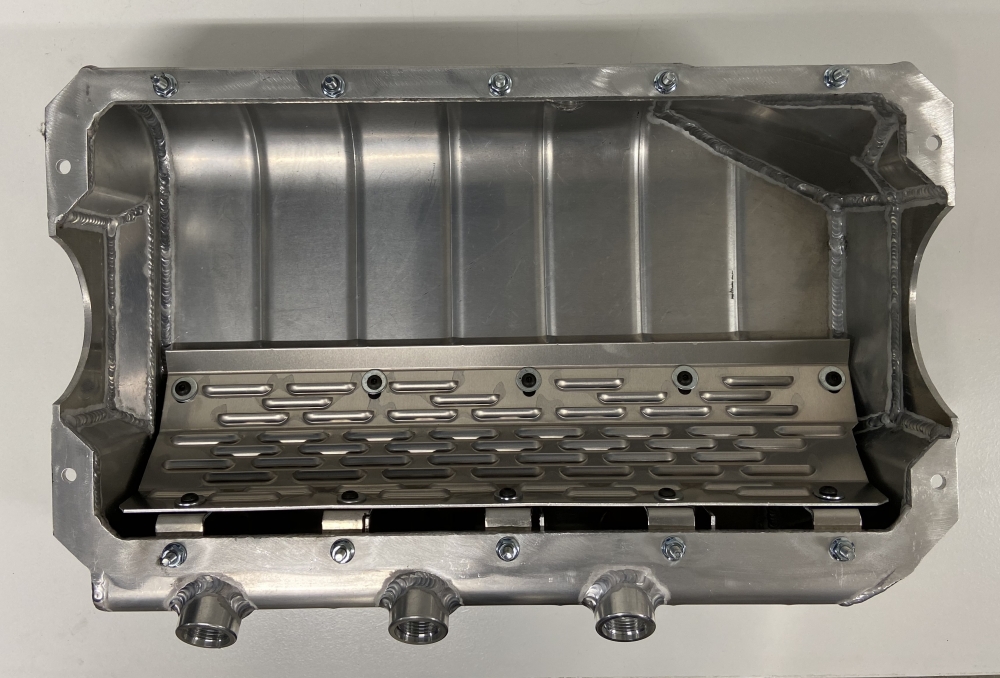

- a louvered windage tray

It requires the removal of block material on the block and changing the mounting holes on the left side of the block.

Use: Circle track

Starter: Reverse mounted

Installation Instructions: Follow the directions on attached file to install this pan.

Related Files

• Install PRO pan
