LS1020 > Chevrolet LS1
LS1020 - $403.11
- Style:
- Chevrolet LS1
- Dimensions:
- 4 1/2" deep

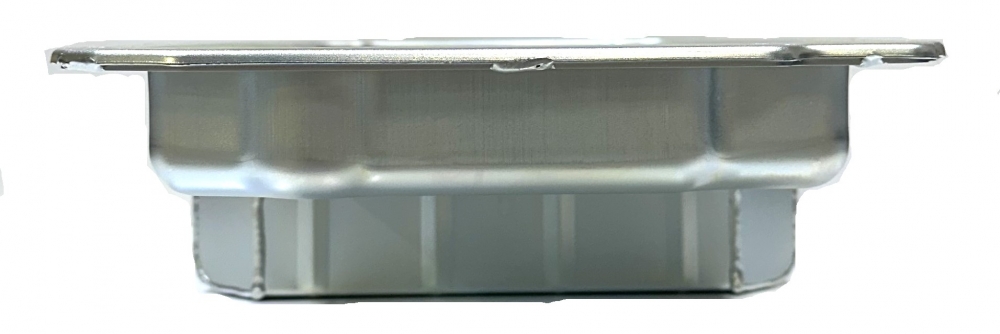

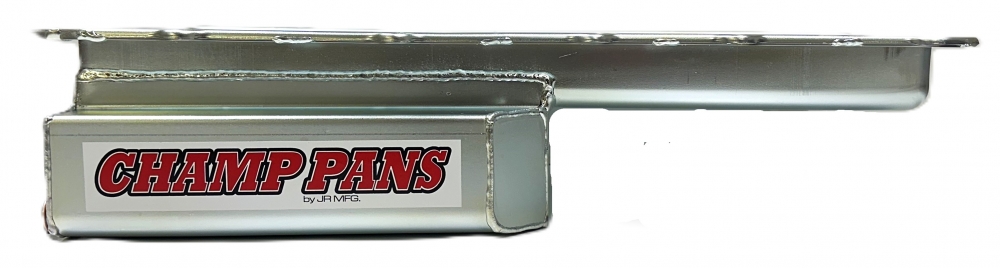

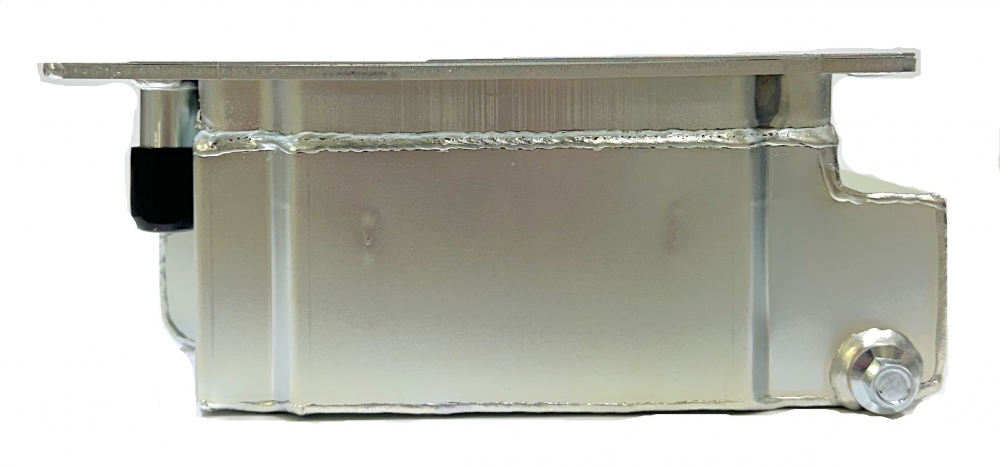

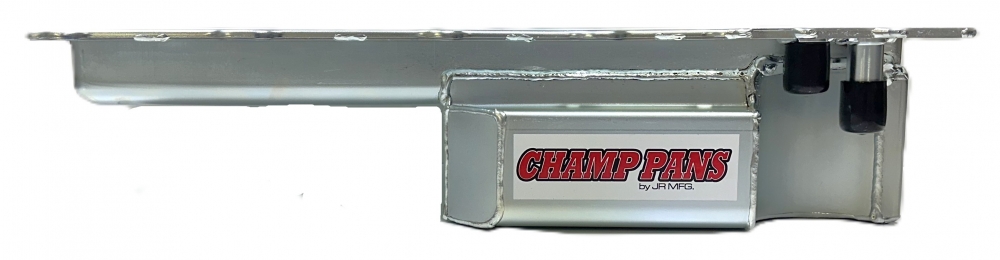

Description:*PICTURES ARE OF A RAW LS1120. ALL PANS WILL HAVE A CLEAR ZINC COATING*
This steel wet sump oil pan is for the Chevrolet LS1 engines. This oil pan features:
- four trapdoors

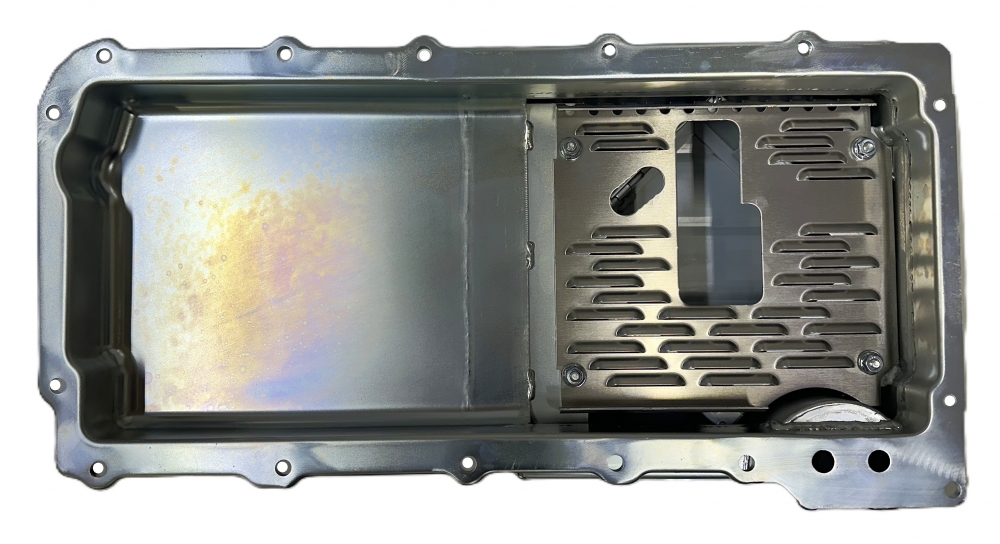

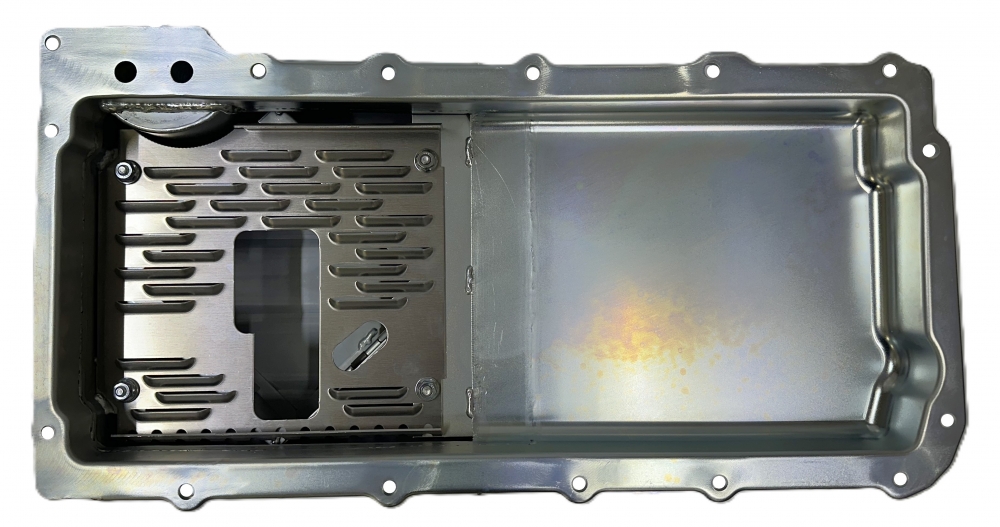

- a removable louvered windage tray
- a pan rail girdle

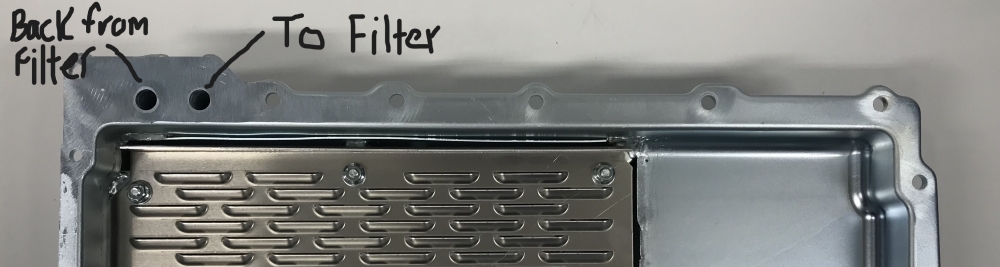

- two -10 an fittings for the remote oil filter
- a clear zinc finish
This oil pan was designed for the Pro-Lite Spec chassis for the Champ Off-Road series.
You can use the factory tray with this oil pan.
Oil capacity: 5 quarts
Use: Off-road, road race, street or strip
Dipstick: 98-02 F-body Camaro
Starter: Stock
Dimensions: 11 1/4” L x 11 1/4" W x 4 1/2" H
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 752LS1 | 10295 and 10355 | 7/8" x 4 1/2" deep pickup | $80.85 |
