CP40RB > Small Block Chevrolet 1986-2003
CP40RB - $165.30
- Style:
- Small Block Chevrolet 1986-2003
- Dimensions:
- 7 1/2" deep

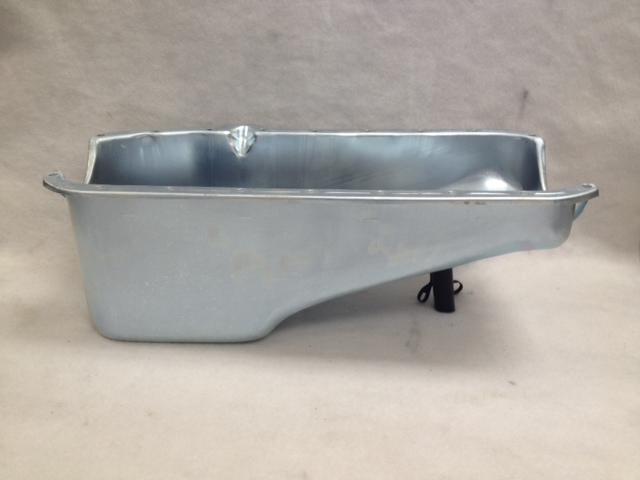

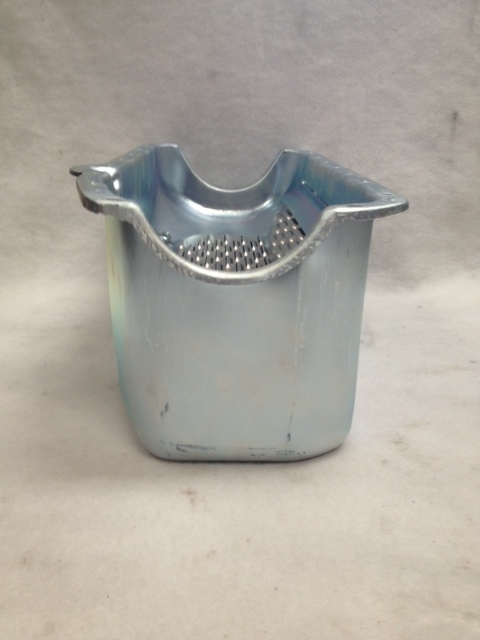

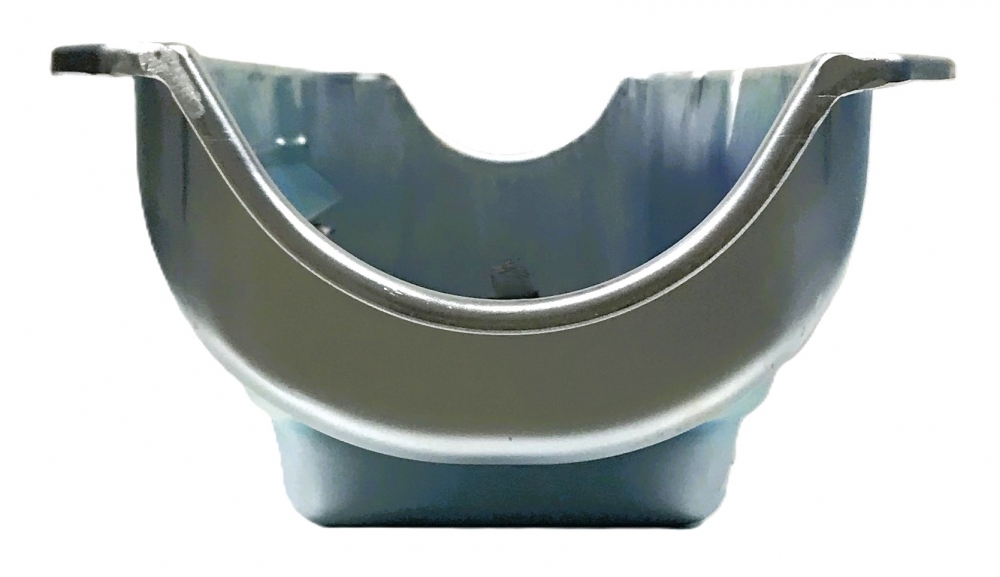

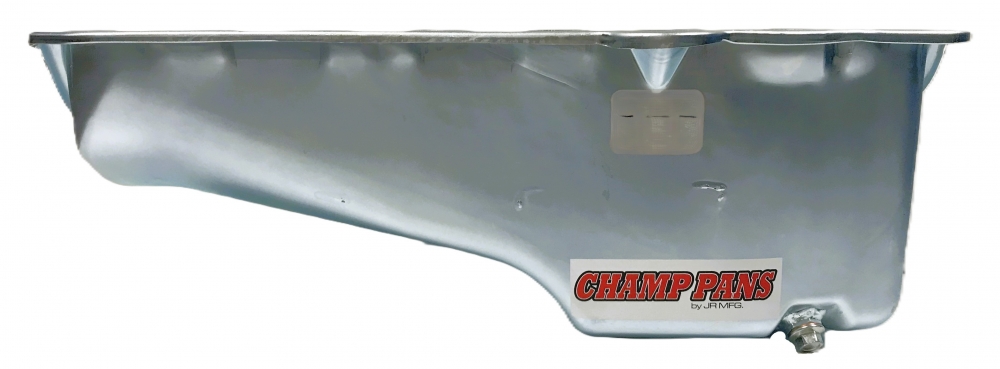

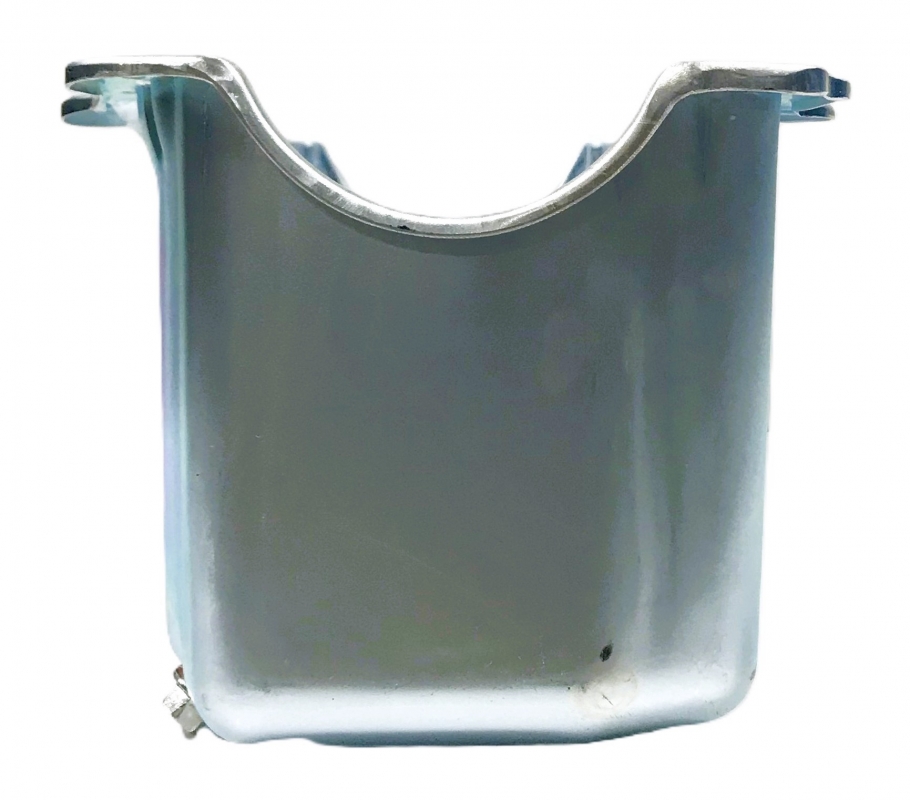

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with the one piece rear main seal engines. This oil pan features:
- a stock appearance
- one 6” trapdoor
- one crank scraper

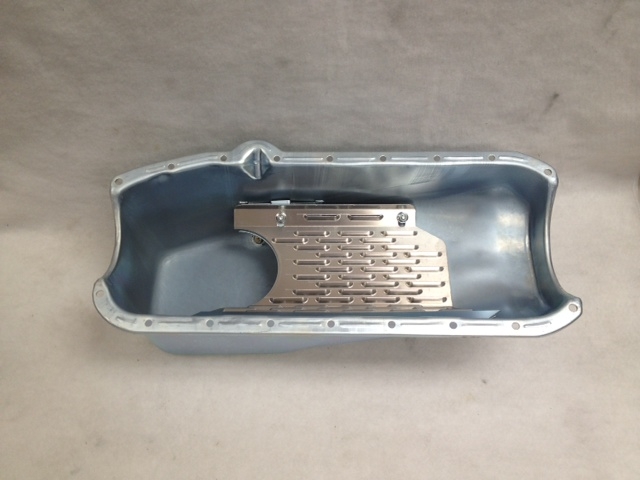

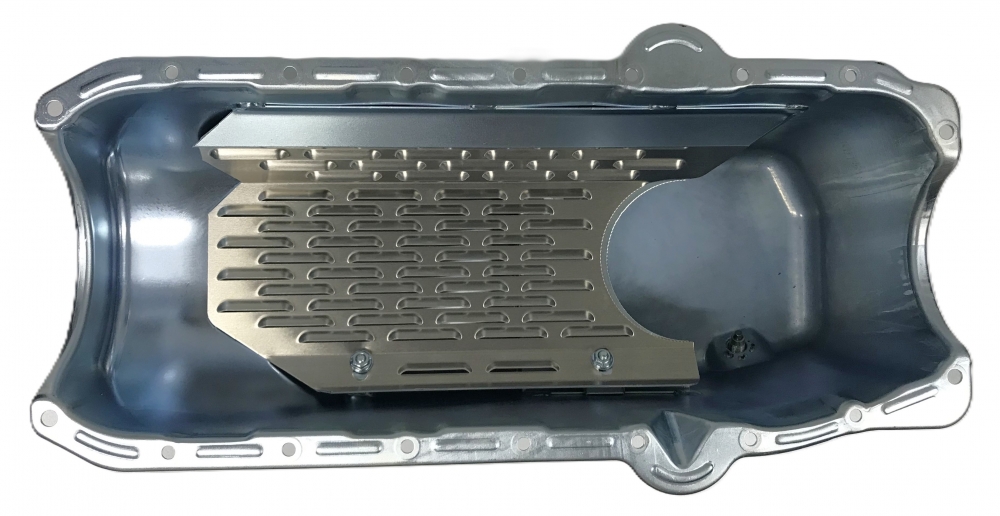

- a removable horsepower saving louvered windage tray
- a clear zinc finish
Will fit all chassis.
This oil pan is NHRA approved.
The 50SB pickup is for the M55 pump (only this oil pan).
Oil capacity: 5 quarts with filter
Use: Dirt circle track (hobby stock), road race, street or strip
Dipstick: Factory
Dimensions: 7 1/2" deep
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 40SB | M-55HV, 10550, 10550C and 10550ST | 5/8” x 7 1/2” deep pickup | $39.33 |
| 50SB | M-55HV, 10550, 10550C and 10550ST / M-55 and 10553ST | 5/8” x 7 3/4” deep pickup | $39.33 |
| 51SB | M155HV, 10551 and 10551ST / M155, 10554 and 10554ST | 3/4” x 7 3/4” deep pickup | $42.90 |
| WS40 | CP40 series | Louvered windage tray | $24.75 |
