CP208LT > Big Block Chevrolet Mark IV
CP208LT - $299.40
- Style:
- Big Block Chevrolet Mark IV
- Dimensions:
- 8" deep
Description:This steel wet sump oil pan is for the Big Block Chevrolet two piece rear main seal Mark IV engines. This oil pan features:
- a stroker core that is 4 3/4” deep in front
- 14 gauge steel
- one 6” trapdoor
- one crank scraper
- a dipstick provision

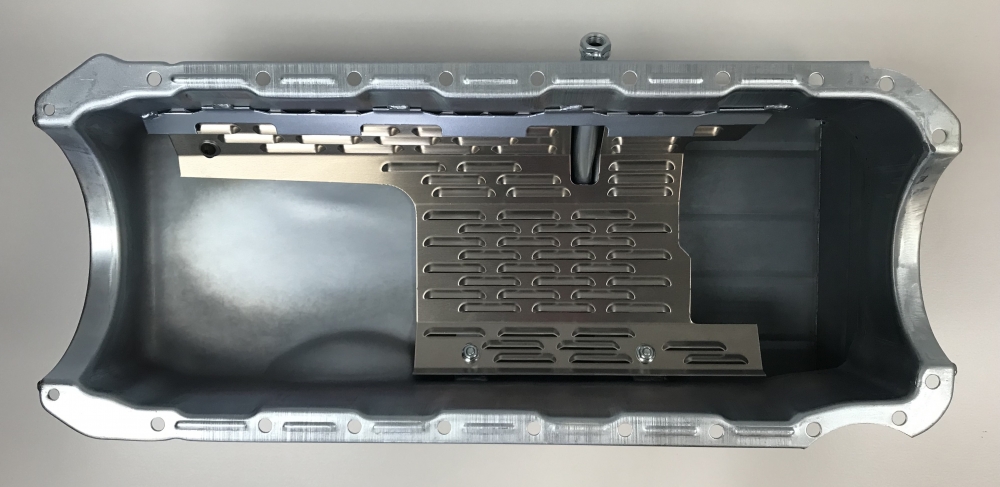

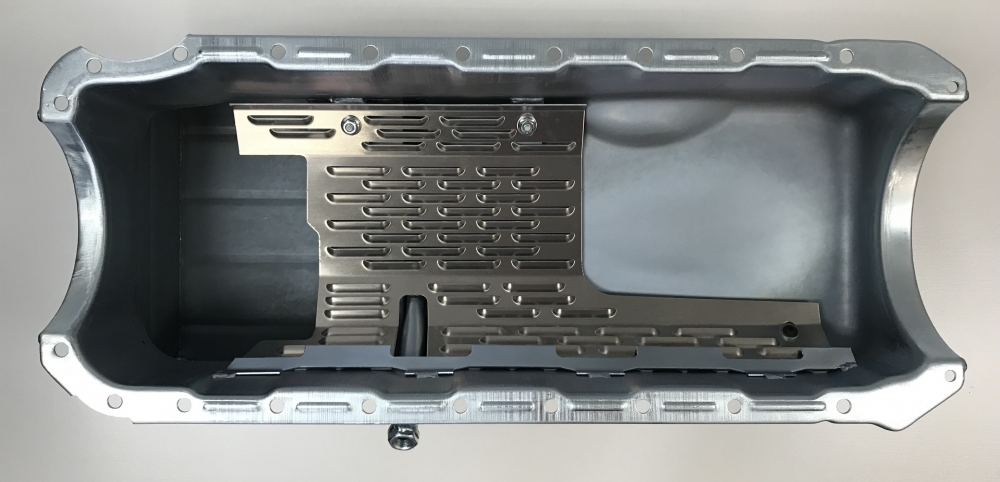

- a louvered windage tray
- a clear zinc finish
Will fit some stock cross membered cars. May need to re-work cross member to fit.
It will clear a 4 3/4" stroke.
It is NOT for Marine use.
Oil capacity: 8 quarts with filter
Use: Street or strip
Dipstick: Use JR130
Starter: Stock or mini-starter
Dimensions: 9 3/8" L x 11" W x 8" H
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 208BB | M-77HV and 10770 | 3/4” x 8” deep pickup | $42.90 |
| LT-6 | CP208LT & CP210LT | Louvered windage tray | $51.70 |
| JR130 | Big Block Chevrolet | Dipstick assembly | $28.65 |
