CP106LTRB > Small Block Chevrolet 1986-2003
CP106LTRB - $355.50
- Style:
- Small Block Chevrolet 1986-2003
- Dimensions:
- 6 1/2" deep

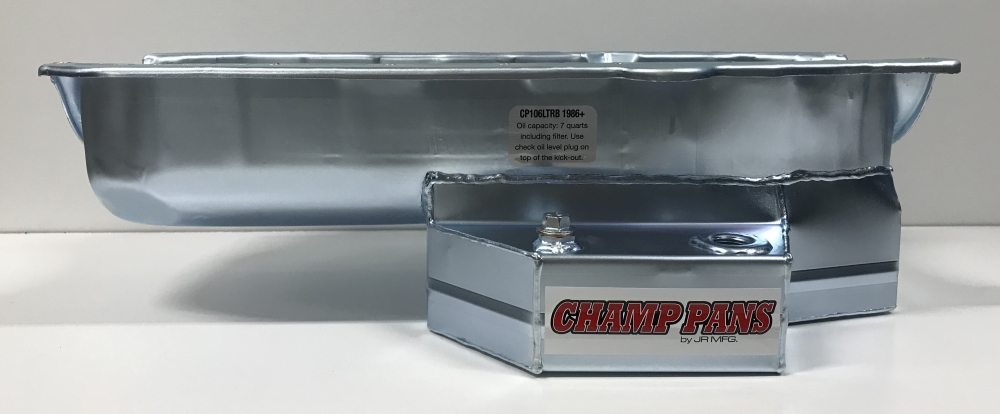

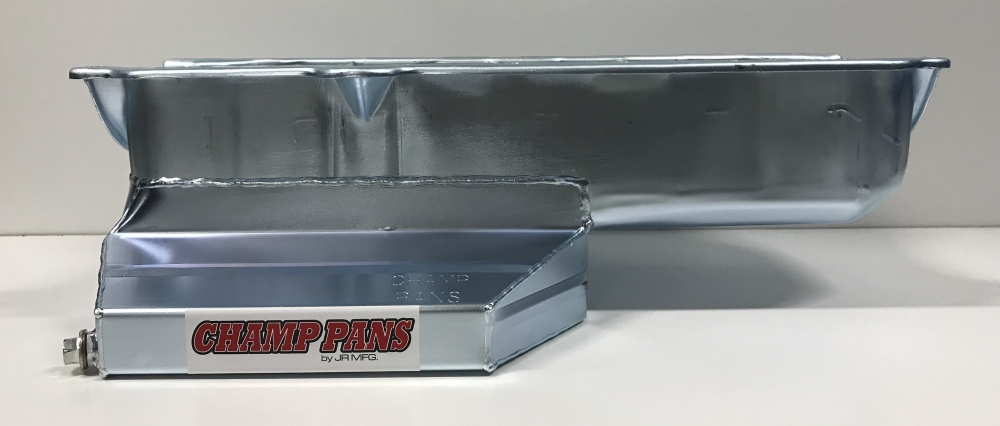

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with the one piece rear main seal engines. This oil pan features:
- the sump at 6 1/2” deep which allows for better ground clearance for asphalt race cars
- six trapdoors
- three crank scrapers
- an oil temp fitting
- an oil check level plug

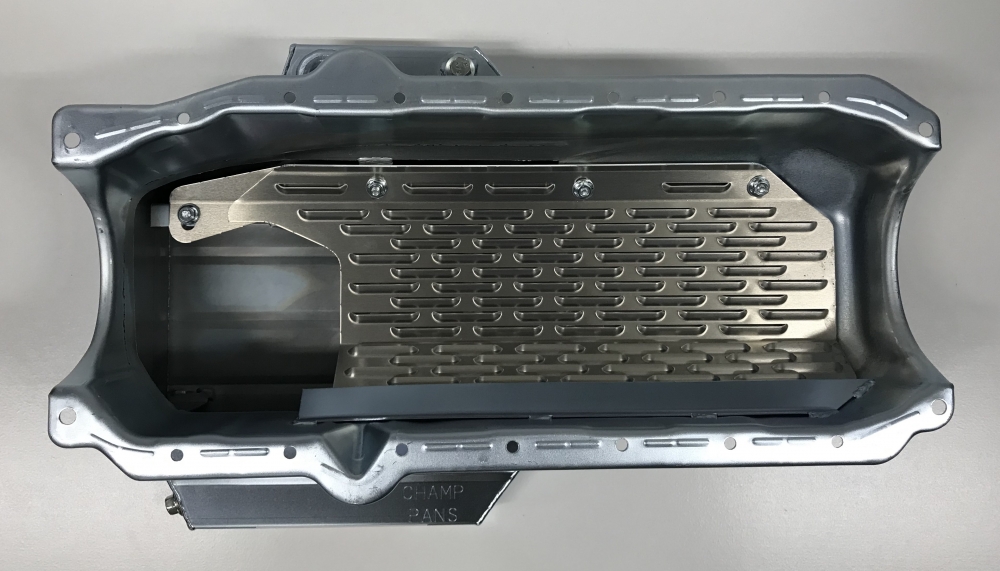

- a removable horsepower saving louvered windage tray
- a clear zinc finish
This oil pan is designed around the Chevrolet Camaro front stub with the engine set back.
We recommend using an accusump because of the lower oil capacity, unless you are using a remote cooler and oil filter adapter.
Oil capacity: 7 quarts with filter
Use: Asphalt circle track (late model)
Dipstick: Use JR131
Starter: Stock or mini-starter
Dimensions: 12” L x 14" W x 6 1/2" H
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 106SB | M-55HV & 10550 series | 5/8” x 6 1/2” deep pickup | $42.90 |
| 110SB | M-55, M-55A & 10553 series | 5/8” x 6 1/2” deep pickup | $42.90 |
| 1011SB | M155, 10554 and 10554ST | 3/4" x 6 1/2" deep pickup | $53.63 |
| LT-1 | CP55LT, CP56LT, CP57LT, CP80LT, CP100LT, CP101LT, CP106LT | Louvered windage tray | $42.90 |
| JR131 | Small Block Chevrolet, Ford or Mopar | Dipstick assembly | $28.65 |
