CP100KO > Small Block Chevrolet 1957-1985
CP100KO - $475.50
- Style:
- Small Block Chevrolet 1957-1985
- Dimensions:
- 7" deep

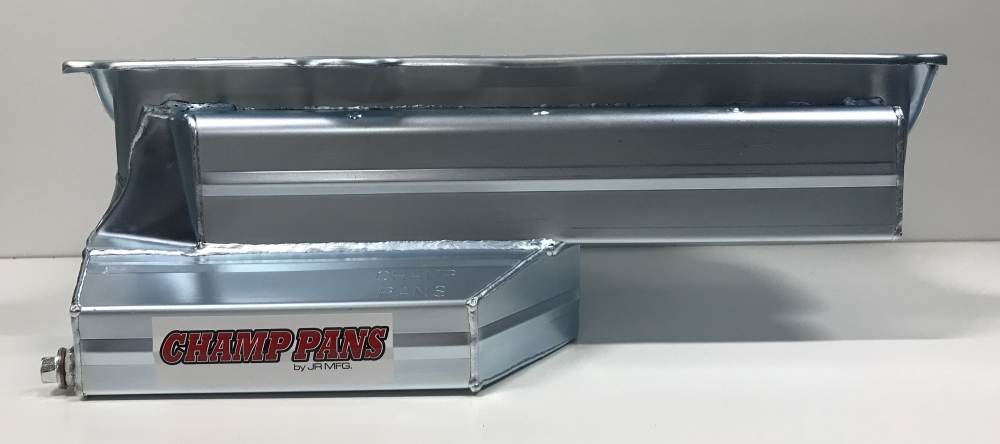

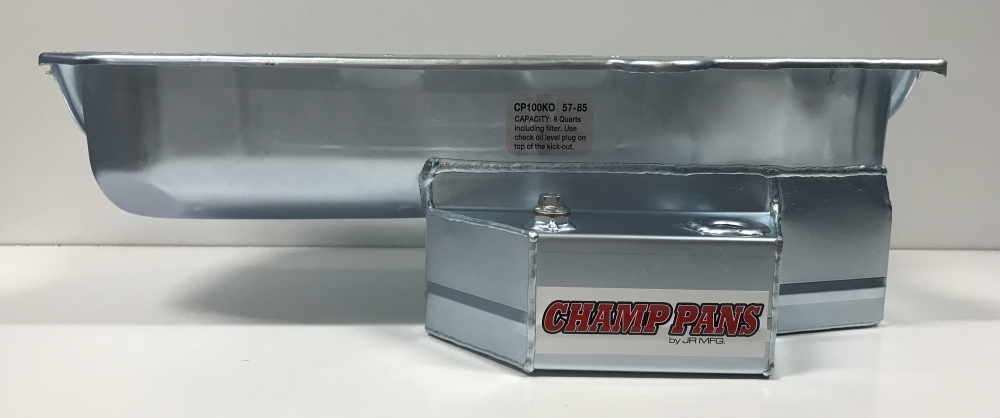

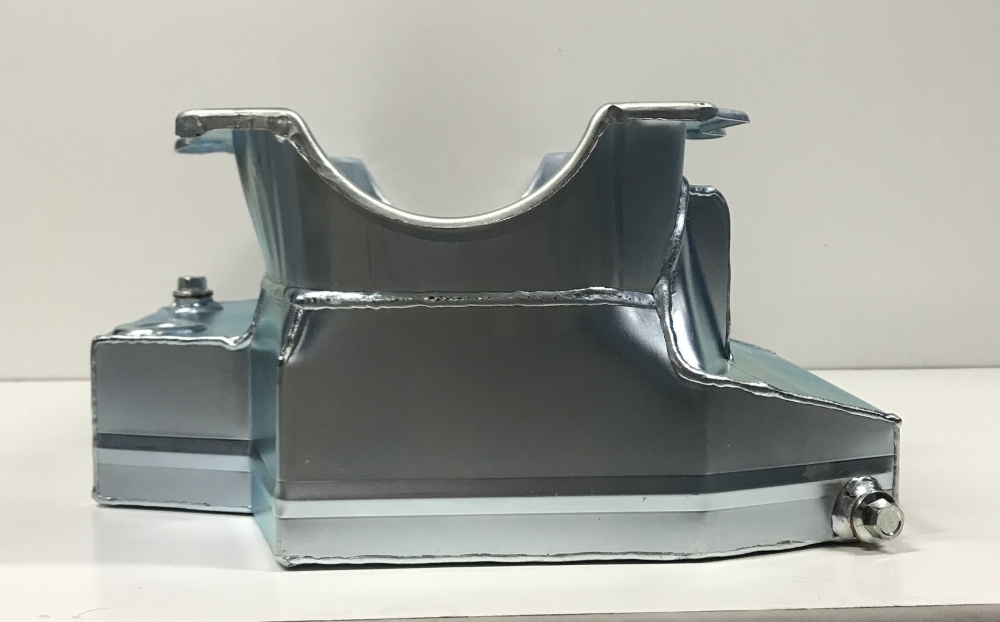

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out that runs the length of the oil pan

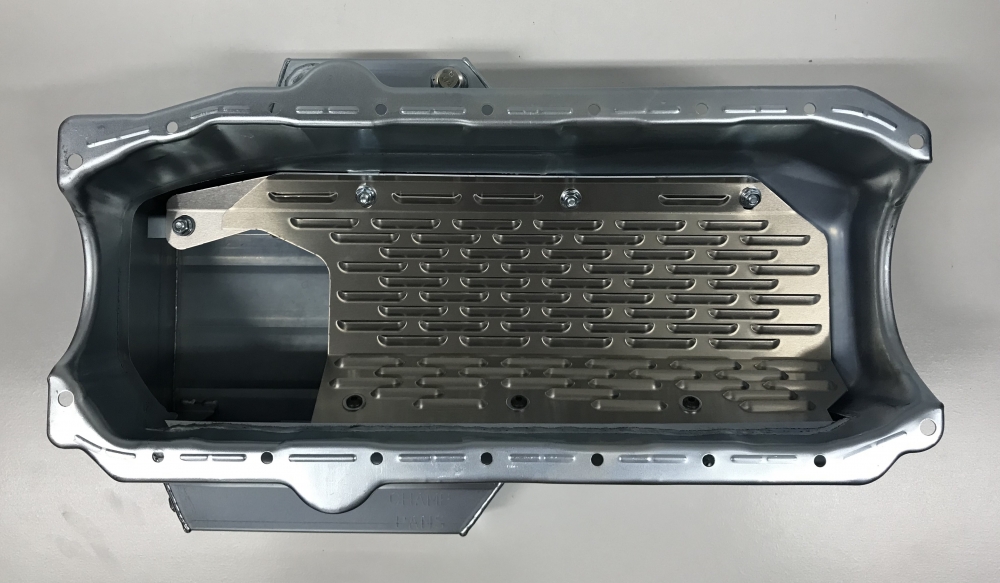

- a removable horsepower saving louvered windage tray
- six trapdoors
- three crank scrapers
- two runners
- an oil temp fitting
- an oil check level plug
- a clear zinc finish
This oil pan is designed around the Chevrolet Camaro front stub with the engine set back.
Oil capacity: 8 quarts with filter
Use: Dirt circle track (super stock or midwest modified)
Series: Competition
Dipstick: Use JR131
Starter: Mini-starter
Dimensions: 12” L x 14" W x 7" H
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 100SB | M-55HV & 10550 series | 5/8” x 7” deep pickup | $42.90 |
| 100BB | M-77, M-77HV, M-99HV, 10770, 10774, 10778 & 10990 | 3/4” x 7” deep pickup | $42.90 |
| 1001SB | M155HV & 10551 series | 3/4" x 7" deep pickup | $42.90 |
| 1003SB | 10552 series & 10555 series | 3/4" x 7" deep pickup | $42.90 |
| 1009SB | M-55, M-55A & 10553 series | 5/8" x 7" deep pickup | $42.90 |
| 1012SB | M155, 10554 and 10554ST | 3/4" x 7" deep pickup | $53.63 |
| LTKO | CP80KO, CP100KO, CP106KO | Louvered windage tray | $51.70 |
| JR131 | Small Block Chevrolet, Ford or Mopar | Dipstick assembly | $28.65 |
| 1025SB | SBC140XVDF | 3/4" x 7" deep pickup | $53.63 |
