PRO6100KO > Small Block Ford 302
PRO6100KO - $823.90
- Style:
- Small Block Ford 302
- Dimensions:
- 7" deep

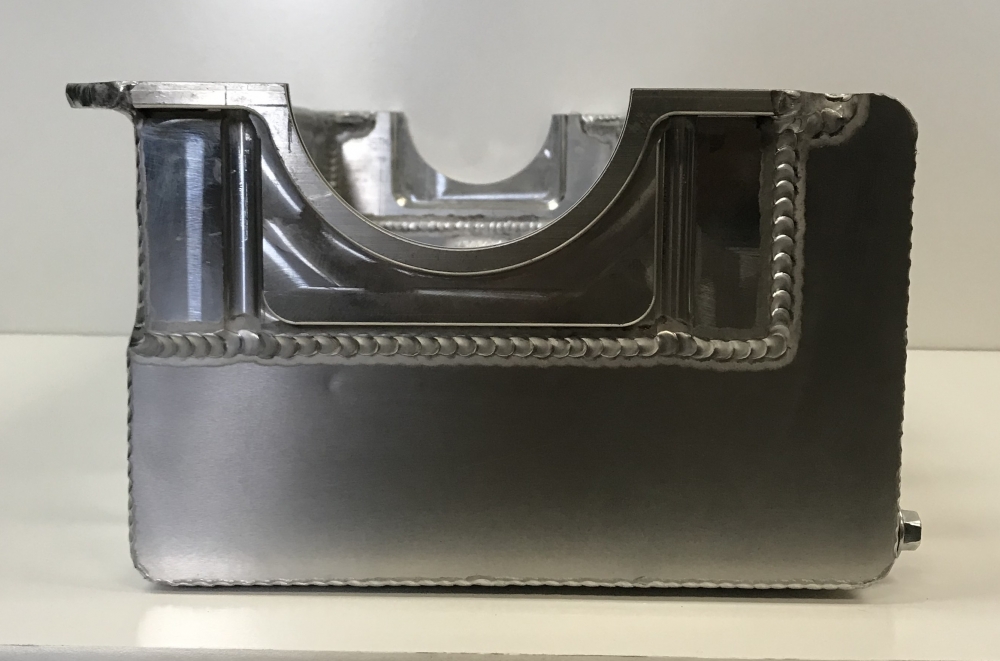

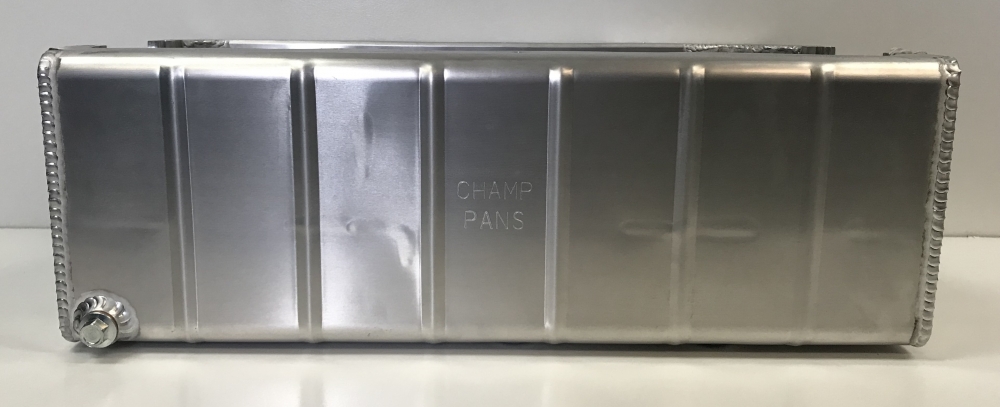

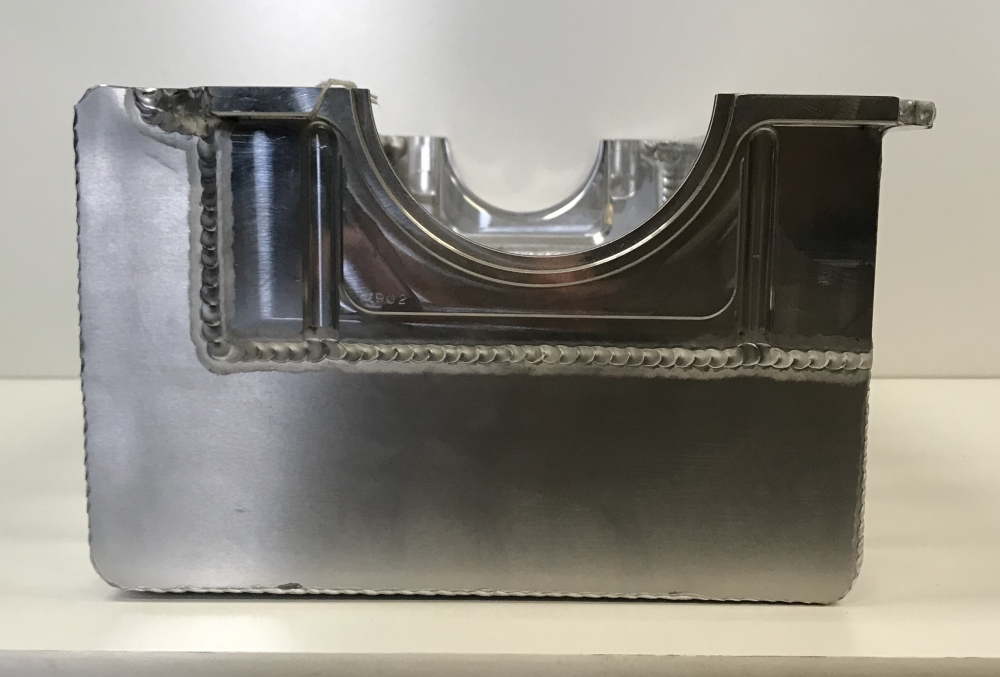

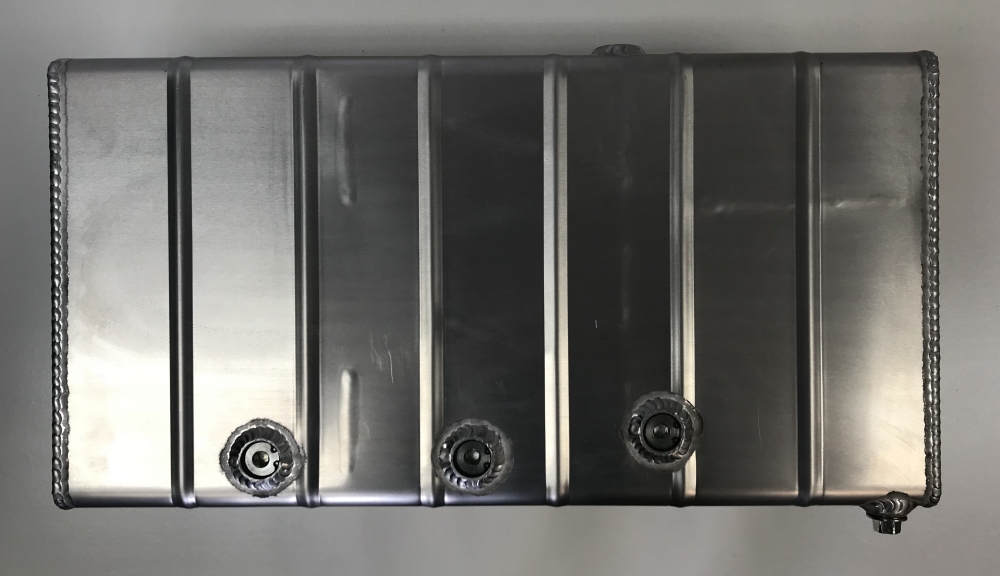

Description:This aluminum wet sump oil pan is for the Small Block Ford 302 engines. This oil pan features:
- a kick out that starts at the pan rail on the right side

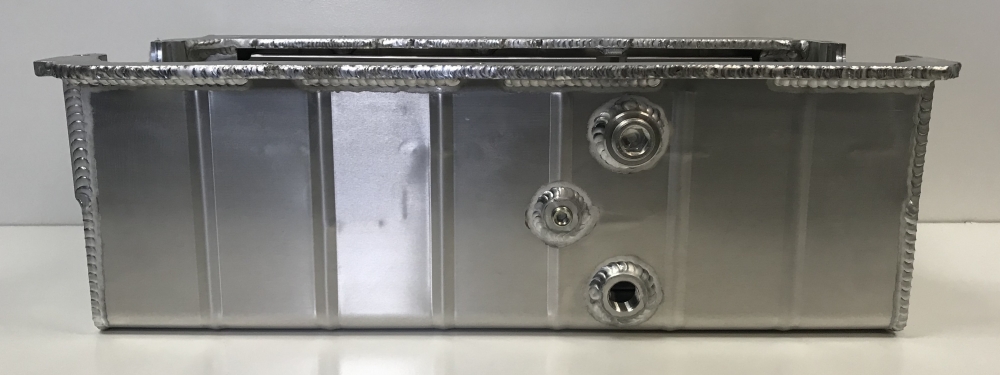

- access plugs for the right side pan rail
- billet aluminum front and rear end caps

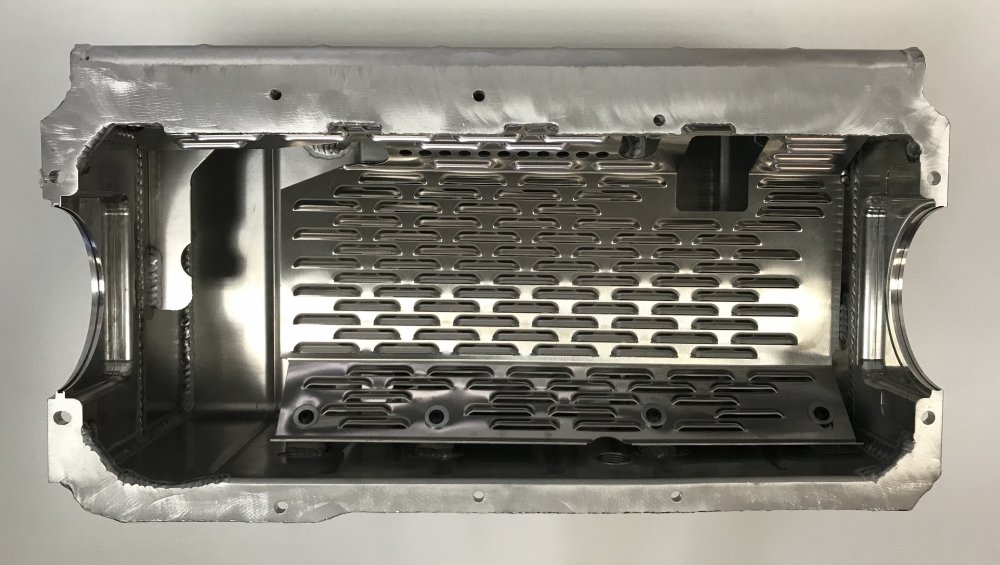

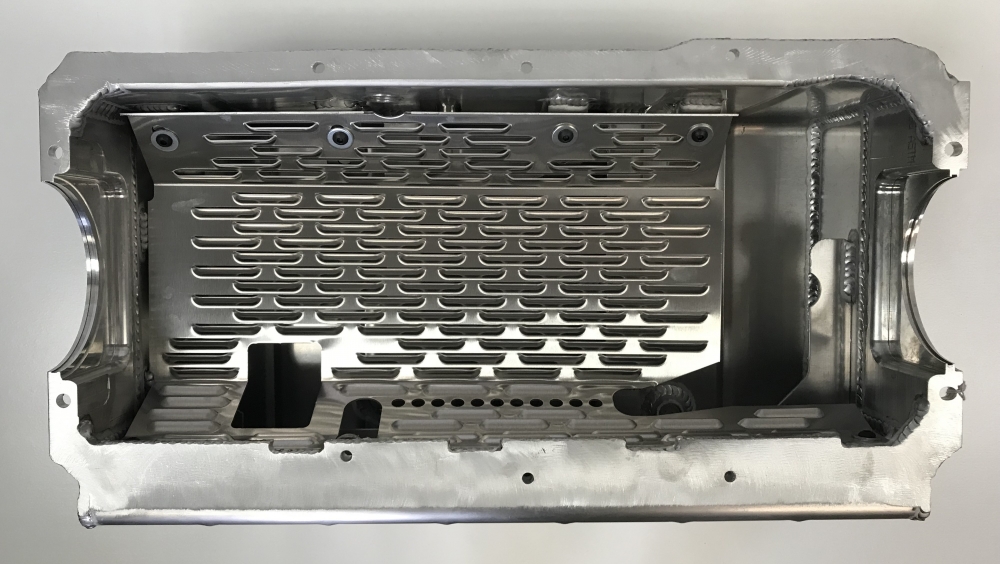

- a louvered windage tray
- five trapdoors
- an oil check level plug
No pan gasket required.
Oil capacity: 10 quarts with filter
Use: Circle track
Starter: Reverse mounted starter
Dimensions: 13 1/4” L x 13" W x 7" H
Weight: 10 lbs
Related Products
| Name | Application | Info | Price |
|---|---|---|---|
| 302SB | M-68HV | 3/4" x 7" deep pickup | $64.90 |
| 6109SB | M-68HV | 3/4" x 7" deep pickup | $69.58 |
| LT-8 | PRO6100KO and PRO7100KO | Louvered windage tray for aluminum oil pans with Option-9 | $68.48 |
| OPTION-9 | Any aluminum oil pan | External pickup installed | $78.10 |
| LT-15 | PRO6100KO and PRO7100KO | Louvered windage tray | $68.48 |
